Adastra Warehouse Music Sound System with Suspended Pendant Speakers, Bluetooth & FM Radio
This Adastra background music system is perfect for installing into the majority of commercial environments such as those with raised/suspended ceilings like warehouses, supermarkets/shops and DIY Stores etc.
The included Pendant Ball Speakers have a 140° downwards dispersion angle to ensure they cover a large area.
The included 120W mixer amplifier can be rack-mounted into any 2U or greater rack cabinet. This means it can be positioned out of sight/reach from the public (rack ears included).
Also at the rear of the speakers, you can select the wattage tappings to balance to the system to your desired level. This also provides some room for expansion. If you require more speakers you can reduce the power tapping to free up room for more speakers.
Please note, although we include 6 speakers in this system you can add more speakers if you wish. Please call us on 02476 369890 and our sales team can help.

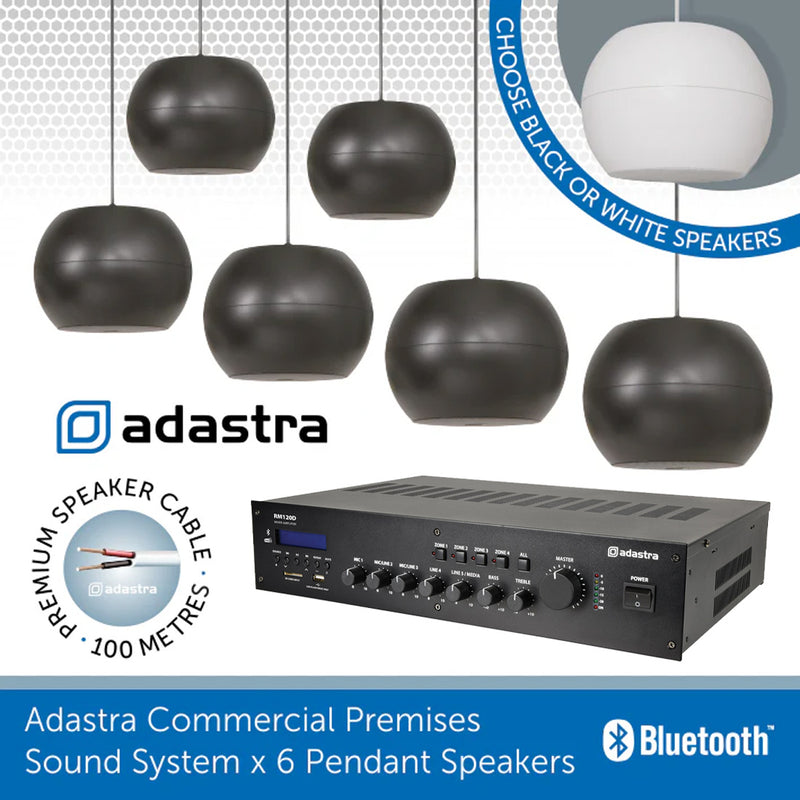

Included in package
1 x Adastra 120W 100V PA Mixer Amplifier
6 x Adastra 5" or 6.5" Suspended Pendant Speakers (Black or White)
1x 100m Heavy-Duty 2-Core Speaker Cable
Installers will be pleased to know that the amplifier includes rack ears so it can be mounted in a rack cabinet or simply sat on a shelf.

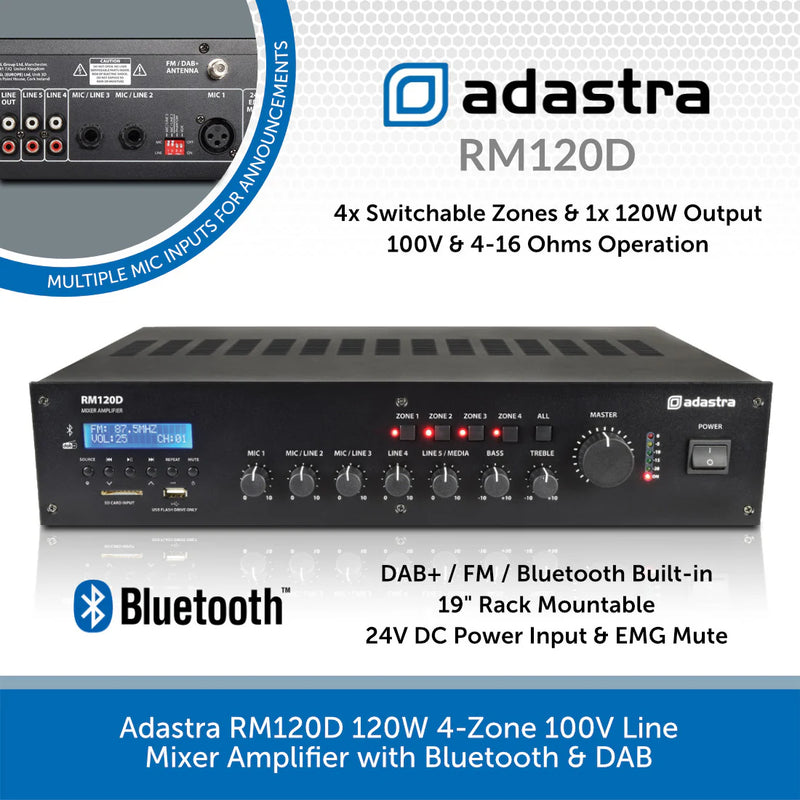

Adastra 5-Channel 100V Mixer Amp with Bluetooth
Commercial grade 120W - 100V line amplifier with an integral mixer in a 2U rack-mountable housing. Featuring 5 input channels which include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, of which one can be fed from the internal USB/SD card audio player.
Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. Generous features and versatility making a comprehensive control centre for commercial sound installations.
- 5 input channels
- Bluetooth Receiver: (max 5 meters)
- Integral USB/SD card input
- FM Radio Tuner
- 8 ohms or 100V line speaker output
- 2U 19" rack-mountable
- Supplied with rack-mount ears

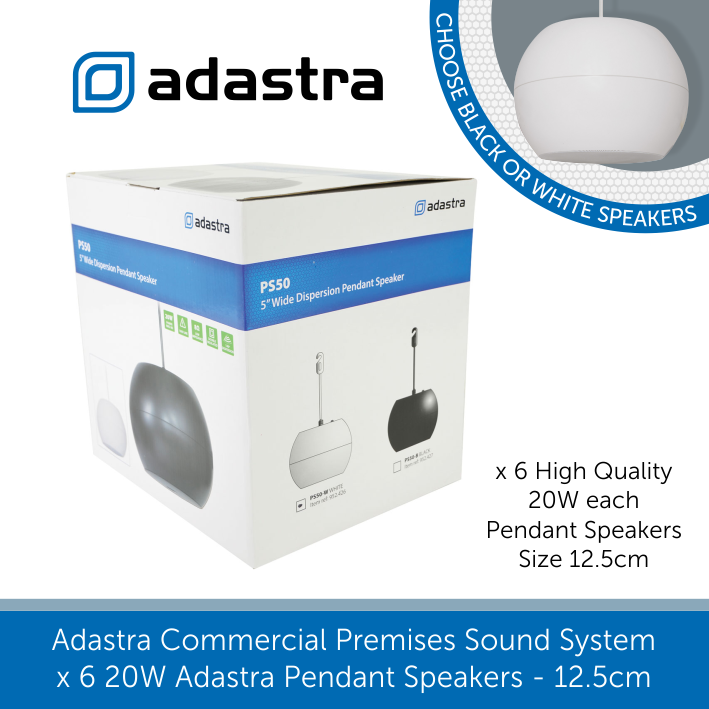

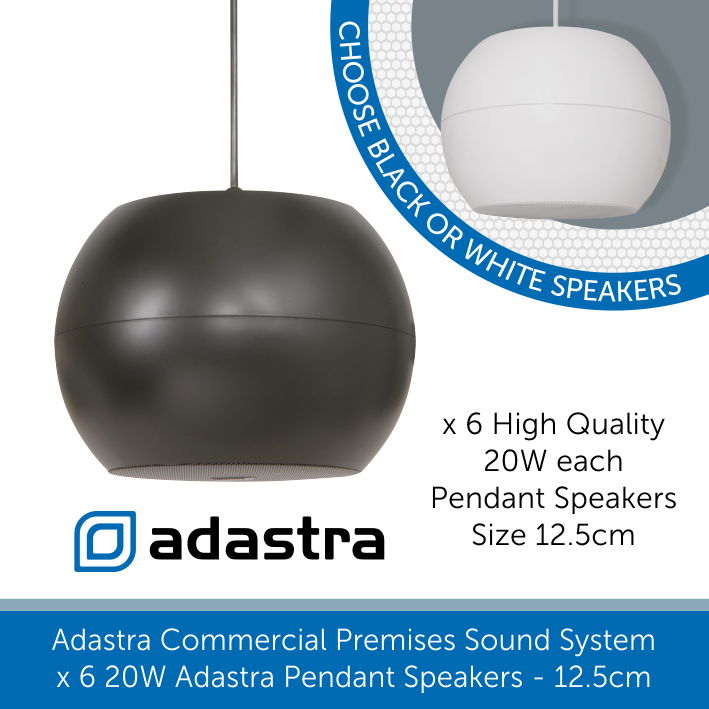

Adastra Suspended Pendant Speakers
The Adastra Pendant Speakers are perfect for adding background audio to any environment such as pubs/restaurants, shops and places of worship. Each speaker features a cable hook so you can hang them from a ceiling, ideal for areas with high roofs where regular ceiling speakers would not be effective.
With a 140° dispersion angle the pendant speakers can be strategically positioned to create a balanced level of sound throughout the chosen environment. A rotary switch on each speaker enables you to manually select the tappings, which is ideal when you need one area to be louder than another.

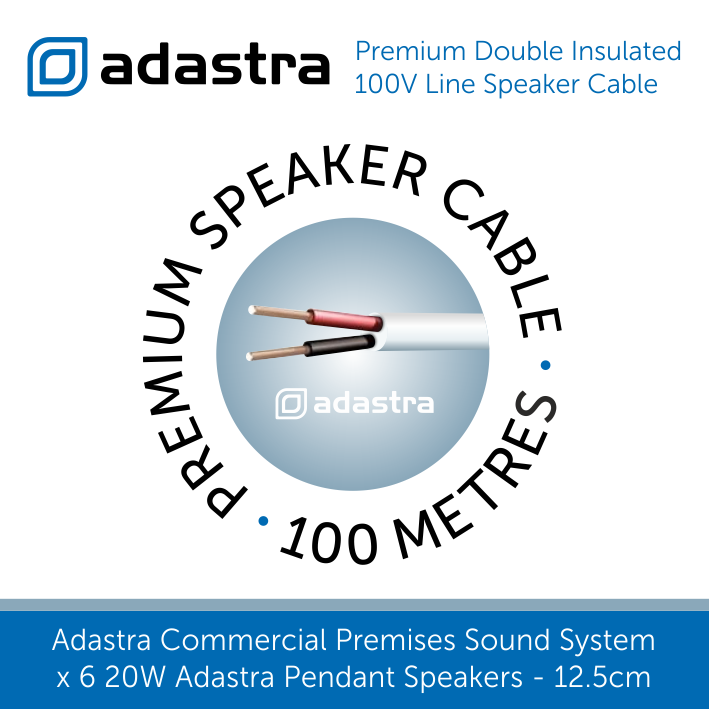

Premium Double Insulated 100V Line Speaker Cable - 100m
Our 100V line cable is a highly flexible speaker cable designed to be used with our 100V line amplifiers to connect up to 12 ceiling or wall mounted speakers.
SPECS & DOWNLOADS
ADASTRA 5 CHANNEL 100V MIXER AMP WITH BLUETOOTH
- Power supply: 110/240Vac, 50/60Hz (IEC)
- DC power: 24Vdc (screw terminals)
- Inputs Mic: XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity: mic 1: (balanced) -53dBV
- Input impedance: mic 1: 5k Ohms
- Input sensitivity: line (unbalanced): -15dBV (-18.5dBV line 5)
- Input impedance: inputs 2-5: 1k Ohms
- Line output: RCA
- Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equalizer: bass: 100Hz ±10dB
- Equalizer: treble: 10kHz ±10dB
- Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 input)
- Audio source: USB/SD player, FM tuner and Bluetooth receiver
- Bluetooth version: 2.0
- THD: <1.0%
- Dimensions: 433 x 320 x 89mm
ADASTRA PENDANT SPEAKERS AVALIBLE IN WHITE OR BLACK
- Version: PS50-W white - PS50-B black
- Colour: White / Black
- Speaker size:125mm (5")
- Dispersion angle:140°
- Rated power at 8 Ohms:20W
- Frequency response: 50Hz - 20kHz
- Impedance: 100V500, 1k, 2k, 4k Ohms
- Tappings:20W, 10W, 5W,2.5W + 8 Ohms

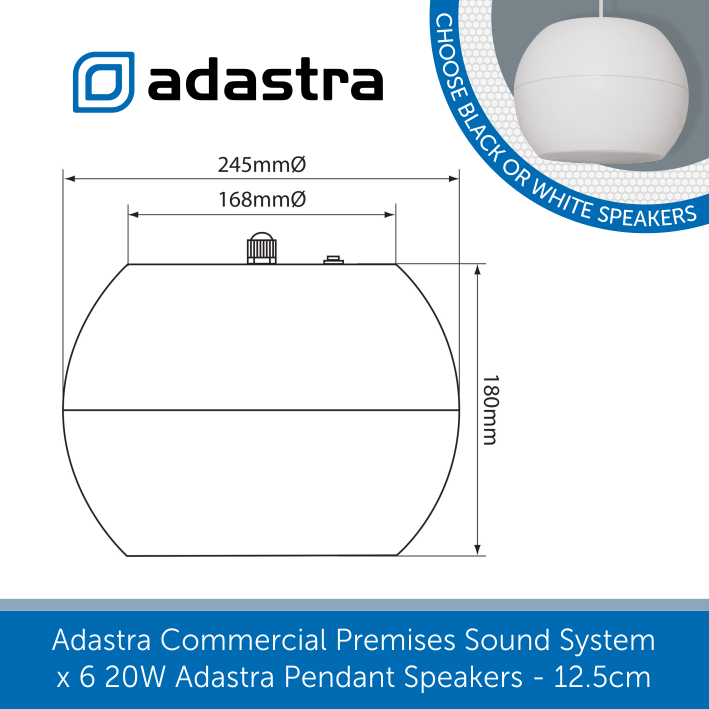

- Dimensions:180 x 245mmØ
- Weight: 2.366kg
PREMIUM DOUBLE INSULATED WHITE 100V LINE SPEAKER CABLE - 100M
- CSA: 0.75mm²
- Strands: 2 x 24/0.2mmØ
- Cable dims: 5.8mmØ
- Current: 6.0A max.
- Length: 100m
