Adastra UM60 Compact Mixer-Amp, 4 x 15W Horn Speakers + Cable - FM Radio & USB Audio

by Adastra
£319.00 (inc. VAT)

Our Adastra UM60 & 15W Horn Speaker Kit is designed to deliver reliable, professional-quality audio for both indoor or outdoor background music/public address applications.

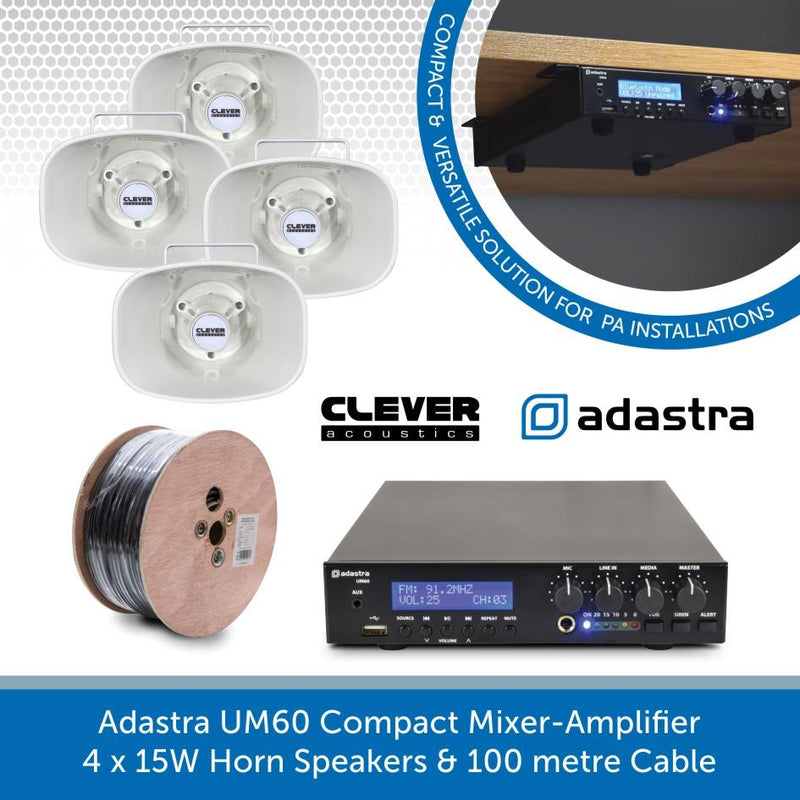

This all-in-one PA speaker system comes complete with the Adastra UM60 Compact 60W 100V Mixer Amplifier, 4 x 15W Weatherproof Horn Speakers, and a 100m drum of heavy-duty speaker cable.

This Adastra UM60 and horn speaker package is suitable for both fixed and mobile PA applications and can be powered via mains lead or 12V battery, such as a car or boat battery.

The complete PA speaker system offers music playback via Bluetooth, FM radio, USB or line input, as well as a microphone input for making announcements or general public address. In addition to this, the UM60 also 3 front panel warning sound buttons (fog/siren/alert). Pressing any of these will issue one of 3 preset warning sounds through the speakers for alerts and/or emergency announcements.

Adastra UM60 Mixer-Amp at a glance...

  • Suitable for fixed and mobile PA applications
  • Efficient Class-D amplifier design
  • Ultra-compact form factor
  • Internal USB/FM/BT audio player
  • Microphone input
  • Fog/Siren/Alert warning buttons
  • 240V or 12V power operation
  • 100V line or 8 Ohms operation

        Clever Acoustics 15W Horn Speakers Key Features

        • 3 year warranty
        • Multiple power taps
        • High intelligibility speech reproduction
        • Rugged ABS enclosure
        • Weather resistant construction suitable for outdoors

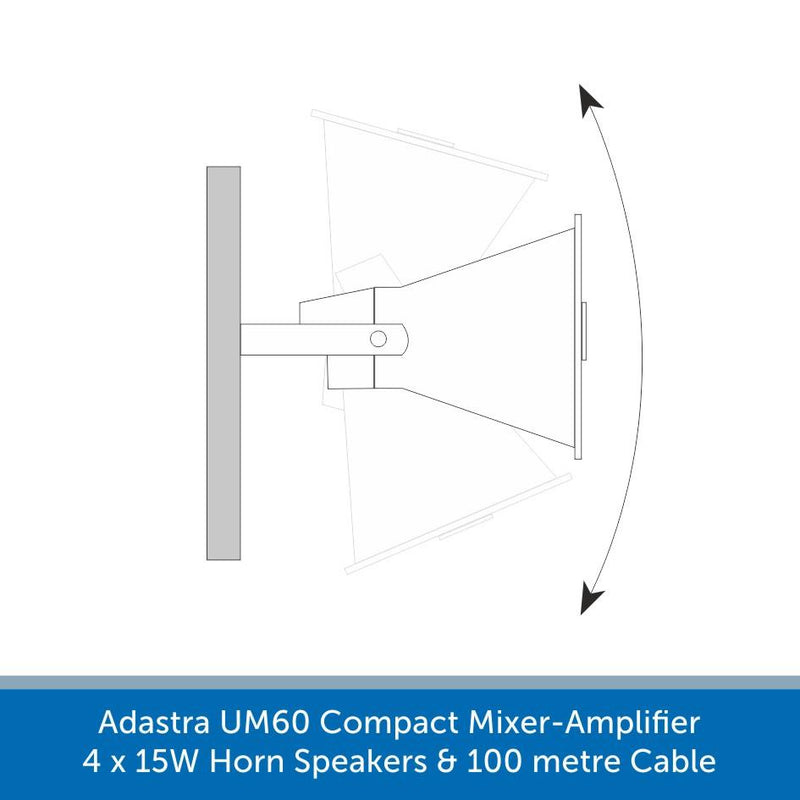

        • Supplied with adjustable mounting bracket

        If you require any assistance with any of our products then call us on 02476 369890 and one of our specialists will be happy to help. Or you can use our Request a call back form.

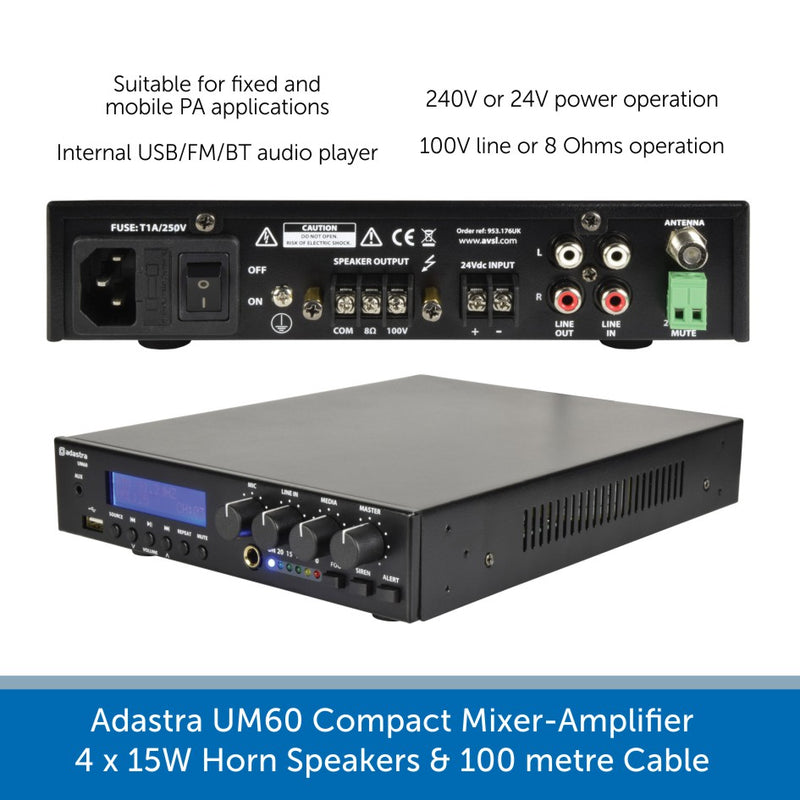

        Adastra UM60 Mixer-Amp Specifications

        • Power supply: 170-264Vac, 50Hz (IEC)
        • Amplifier : construction: Class D + transformer output
        • Audio source: Internal USB/FM/BT player
        • Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
        • Line output: 2 x RCA (mono)
        • Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
        • DC power: 24Vdc screw terminals
        • Mute: 24V relay contacts
        • THD: <0.4% @ 1kHz
        • Input impedance: 1k Ohms (mic/line)
        • Input sensitivity: -10dB (line), -45dB (mic)
        • SNR: 80dB (line), 75dB (mic)
        • Frequency response: 100Hz - 18kHz
        • Output power : rms: 60W
        • Alarm output: Fog, siren & alert generator
        • Dimensions: 269 x 210 x 44mm
        • Weight: 2.47kg

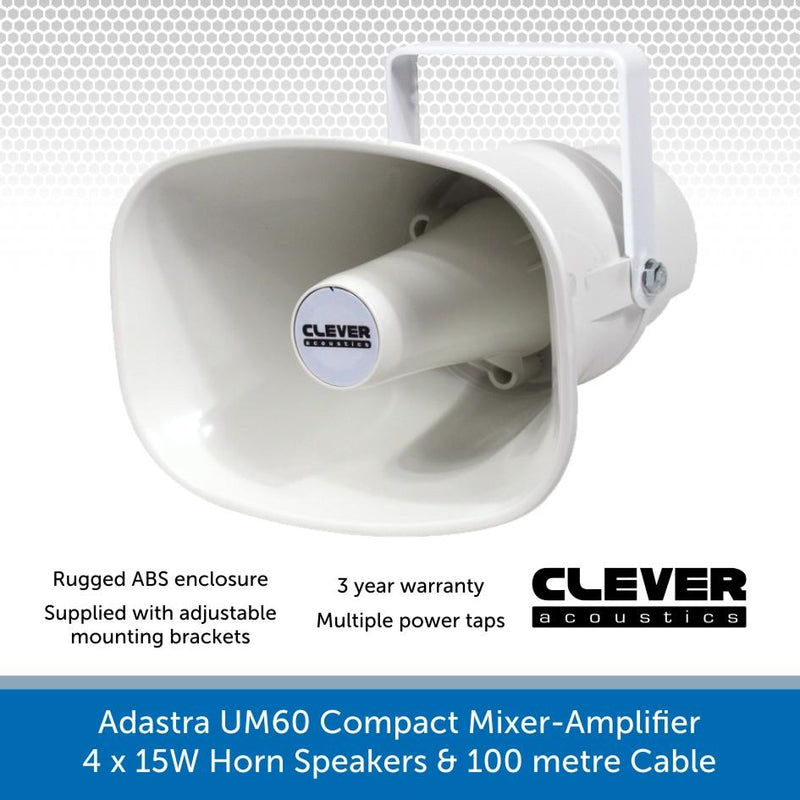

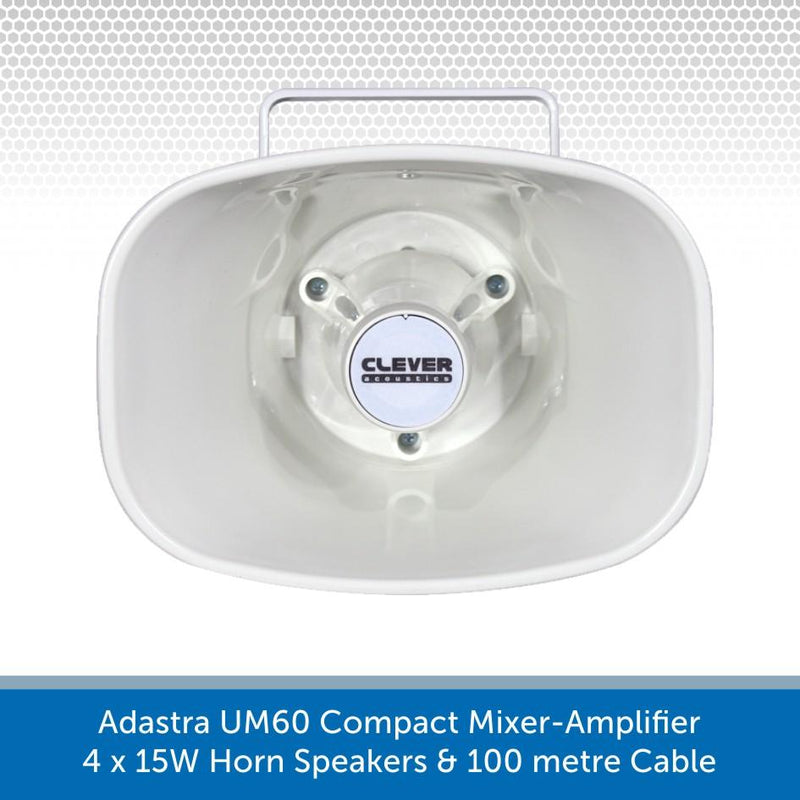

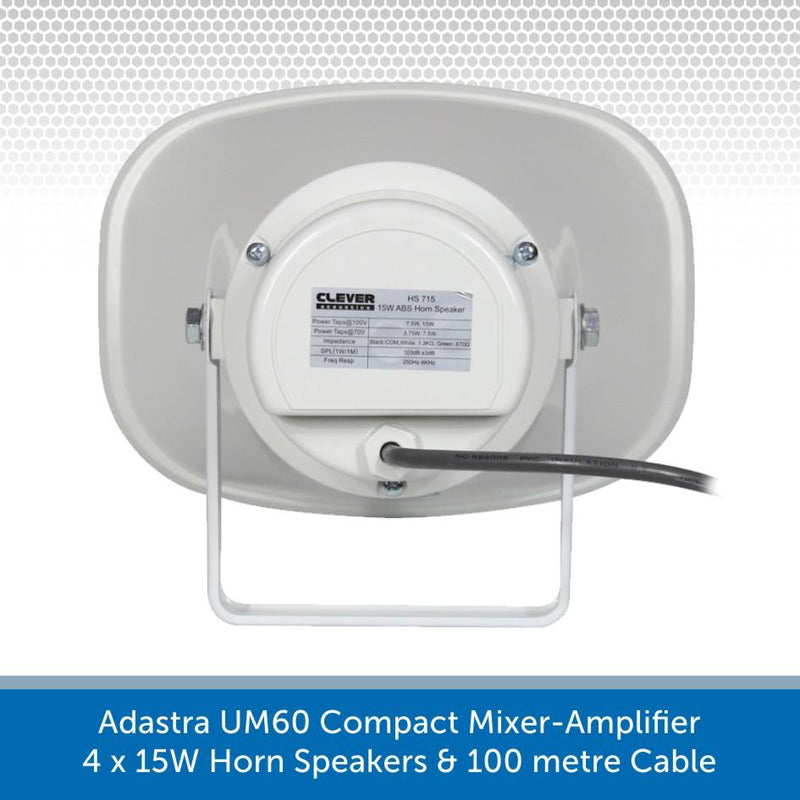

        Clever Acoustics 15W Horn Speakers

        • Input: 100V, 70V

        • Power taps @ 100V: 7.5W, 15W
        • Power taps @ 70V: 3.75W, 7.5W
        • Impedance: 1.3K?, 670?
        • Sensitivity (1W/1m): 103dB (±3dB)
        • Maximum SPL (Rated W/1m): 115dB
        • Frequency response: 250Hz-8kHz
        • Connections: Flying leads
        • Dimensions: 165 x 221 x 235mm
        • Weight: 1.6kg
        • IP rating: IP66

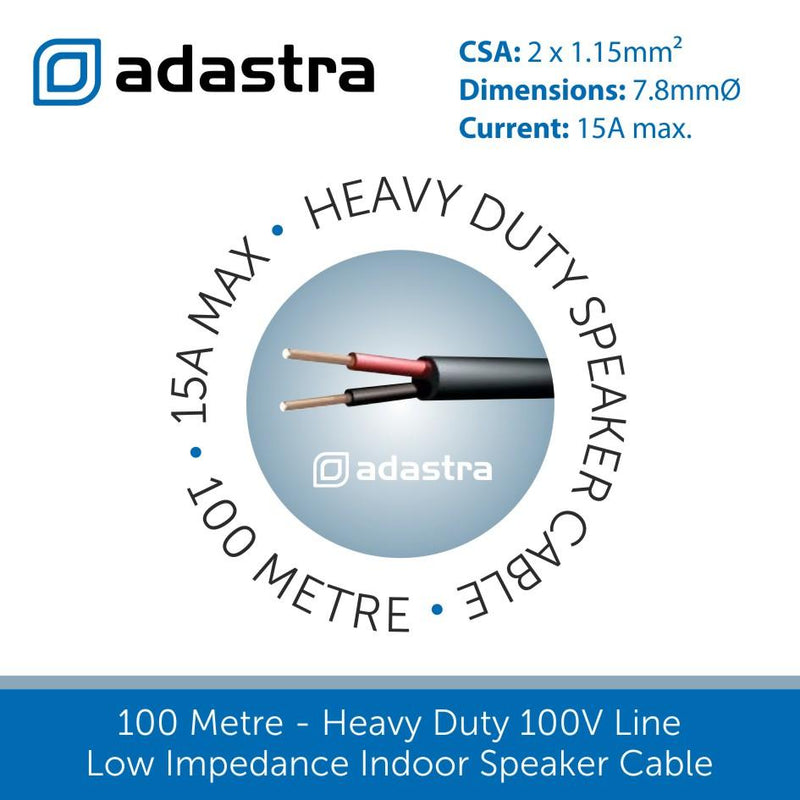

          Double Insulated Speaker Cable

          • CSA: 2 x 1.15mm²
          • Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
          • Dimensions: 7.8mmØ
          • Current: 15A max.
          • Sheath: Black
          • Length: 100m

              Adastra UM60 Mixer-Amp PDF File Download

              Download the User Manual HERE

              ABOUT ADASTRA

              View all Adastra 100v Line products by Audio Volt

              For over 60 years Adastra has serviced the needs of the background audio market as a fully established brand name, celebrated for quality and excellence, and they continue to develop their range in order to remain at the forefront of the industry.

              Founded in 1949, Adastra has earned a great reputation for delivering high-quality background audio systems.

              Their products have been created with you the user in mind, offering a flexible and modular approach to installation of music background systems.

              With a comprehensive range of associated products also available, including speaker brackets, rack cabinets and microphones.
