Adastra RM120D 120W 4-Zone 100V Line Mixer Amplifier with Bluetooth & DAB

by Adastra
Original price £241.00 (inc. VAT) - Original price £241.00 (inc. VAT)
Original price £241.00 (inc. VAT)
£241.00 (inc. VAT)
£241.00 (inc. VAT) - £241.00 (inc. VAT)
Current price £241.00 (inc. VAT)
SKU 953.224

BLACK FRIDAY - Use code BF10 at checkout

Save an EXTRA 10% sitewide, including Sale items!

DETAILS

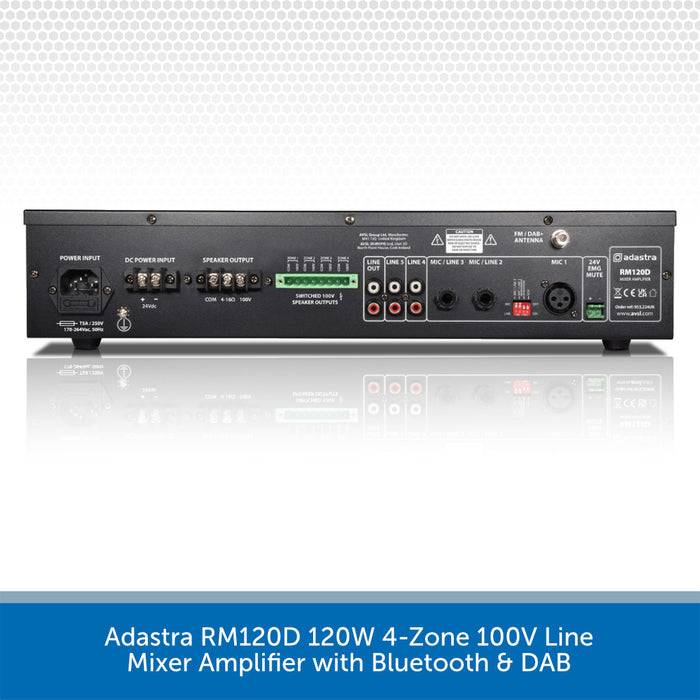

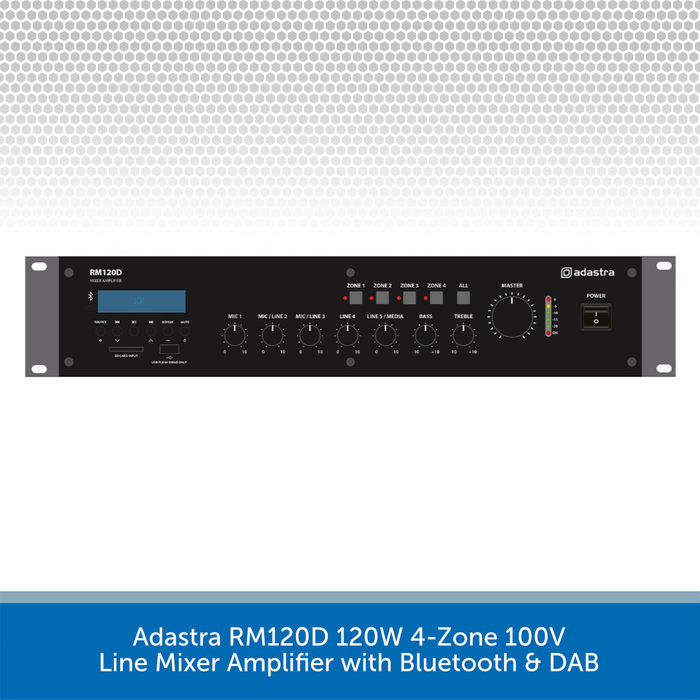

The new updated RM120D amplifier by Adastra is a 5-channel, 4-Zone mixer amp that features DAB+ Radio & Bluetooth connectivity.

The Adastra RM120D is a powerful and versatile mixer amplifier that offers a wide range of features for commercial and mobile PA applications. With a total power output of 120 watts, this 100V amplifier can drive an array of speakers and provide high-quality audio for large multi-zone spaces.

One of the most notable features of the RM120D is its DAB+ radio and Bluetooth connectivity. Users can easily stream music wirelessly from their smartphones, tablets, or other devices, giving them access to a wide range of music and audio content. The Bluetooth receiver features a unique pairing ID, which is ideal for commercial environments as it prevents members of the public from being able to connect.

Additionally, the RM120D also has a built-in media player with a USB/SD card reader which supports MP3 and WAV files.

The Adastra RM120D can be powered via 240V mains or 24Vdc meaning it can be run from a leisure battery; perfect for mobile PA applications such as sports grounds & school fields, equestrian centres, floats & Santa sleighs.

The RM120D has 4 switchable zonal outputs that enable users to isolate certain areas, and switch them off when not in use. Alternatively, it features a single 120W output for applications that do not require zonal control.

It also has 24V emergency mute contacts for the connection of a fire alarm. When an alarm is sounded the amplifier will shut down ensuring a safe and efficient evacuation.

The 2U rack-mountable design makes it easy to install and integrate into any system.

Adastra RM120D Key Features:

  • DAB+/FM radio tuner
  • Bluetooth received with unique pairing ID
  • USB/SD audio player
  • 4 switchable 100V outputs and 1 unswitched output
  • Optional 4-16 Ohm output
  • XLR input with switchable +20V phantom power
  • 2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
  • Switchable VOX voiceover feature
  • 2U 19" rack-mountable (rack ears supplied)
  • 24V emergency mute contacts
  • Mains 230Vac or 24Vdc power operation

Read our blog post about the best amp for restaurants

SPECS & DOWNLOADS

Download the PDF User Manual HERE >

Adastra RM120D Mixer Amplifier Specifications

  • Mains power: 110/240Vac, 50/60Hz (IEC)

  • DC power: 24Vdc (screw terminals)
  • Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
  • Input sensitivity : mic 1 (balanced): -53dBV
  • Input impedance : mic: 1 5k Ohms
  • Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
  • Input impedance : inputs: 2-5 1k Ohms
  • Line output: RCA
  • Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
  • Equalizer : bass: 100Hz ±10dB
  • Equalizer : treble: 10kHz ±10dB
  • Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
  • Phantom power: +20V (mic 1 input)
  • Audio source: USB/SD player, DAB tuner and Bluetooth receiver
  • Emergency control: 24V contacts - mute all except Mic.1 when triggered
  • Bluetooth version: 5.0
  • THD: <1.0%
  • Power : output: 120Wrms
  • Speaker : outputs: 100V / 4-16 Ohms / COM terminals
  • Weight: 6.36kg
  • Dimensions: 433 x 320 x 89mm

}
