19" Rack Mount Cabinets - Lockable Door - Tamper Proof - 450mm or 600mm Deep

by Adastra
Original price £106.00 (inc. VAT) - Original price £399.00 (inc. VAT)
Original price £106.00 (inc. VAT)
£106.00 (inc. VAT)
£106.00 (inc. VAT) - £399.00 (inc. VAT)
Current price £106.00 (inc. VAT)
SKU 953.504
Height: 4U

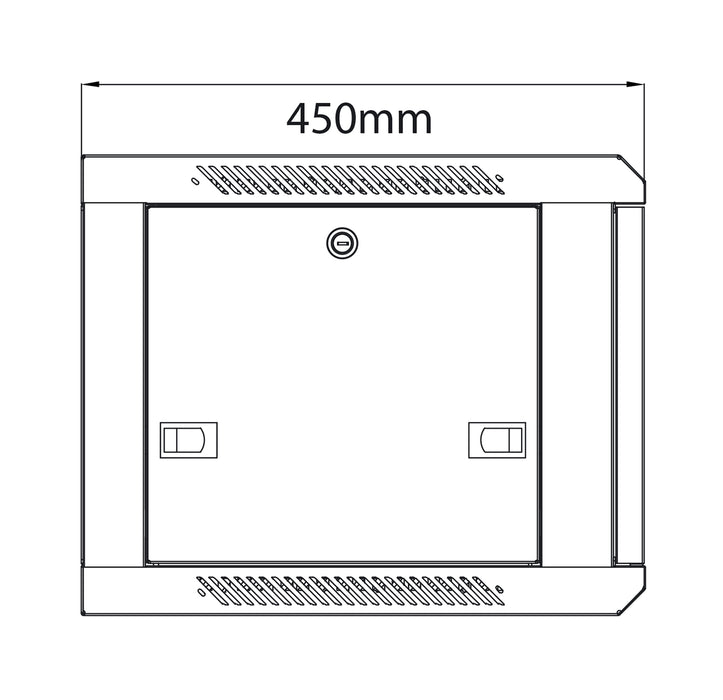

Depth: 450mm

DETAILS

Cabinets for 19" rack-mount equipment with removable side panels and lockable front door.

These 19" rack cabinets are constructed from cold-rolled solid steel with folded edges for strength and stability.

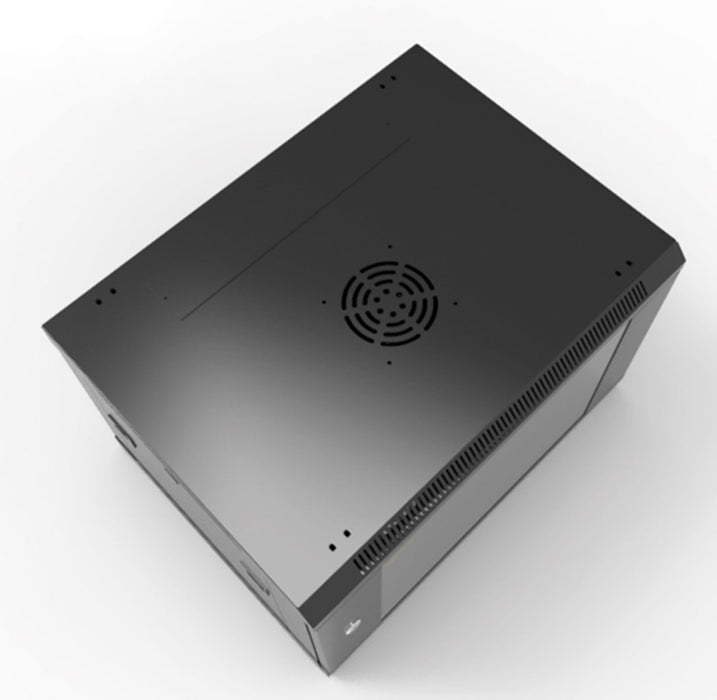

The top panel is vented for cooling and has a cut-out for mounting a cooling fan if required.

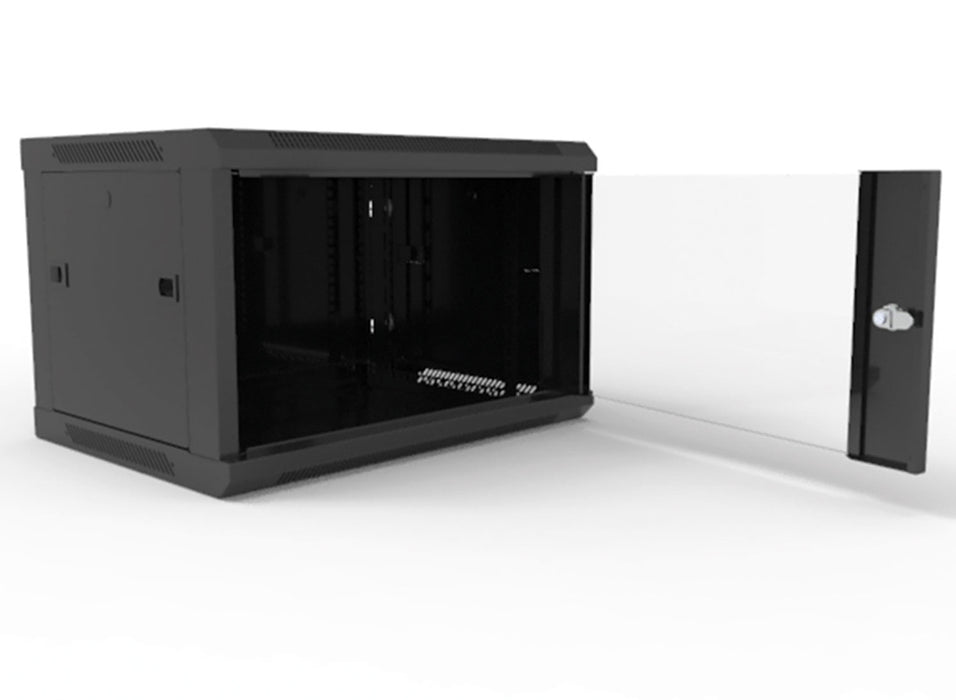

Supplied with a lockable, tamper-proof glass door and 2 keys.

The rear panel has fixing apertures for wall mounting or alternatively, the cabinet can be free-standing. PLEASE NOTE, the cabinet is only suitable for wall-mounting lightweight equipment. For heavy loads, the cabinets must be free-standing.

Key Features:

  • Durable epoxy powder-coated finish
  • Supplied with glass door, lock and 2 keys

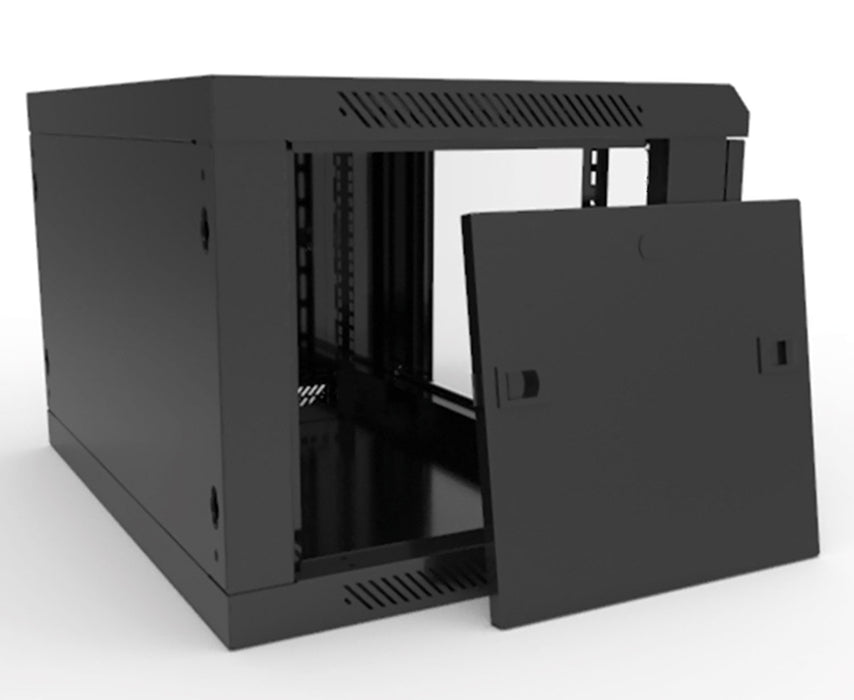

  • Clip-in side panels for easy access
  • Wall mountable or free-standing
  • Easy to assemble with adjustable front & rear rack strips
  • Top and bottom knock-outs for cable feeds
  • Available in 2 depths and various rack heights

In the box:

  • Top panel
  • Base panel
  • Front frame
  • Rear frame
  • Rear plate
  • 4 x rack strips (2 left + 2 right)
  • 4 side panel plastic locator studs
  • Glassdoor
  • Assembly hardware
  • Door lock + 2 keys
  • Rack mounting captive nuts & screws



SPECS & DOWNLOADS

Rack Cabinet Specifications

  • Material: 1.2mm cold rolled steel & 5mm tempered glass
  • Finish: Epoxy powder coated RAL9004
  • Maximum load: 100kg static (total)
  • Standard: ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant

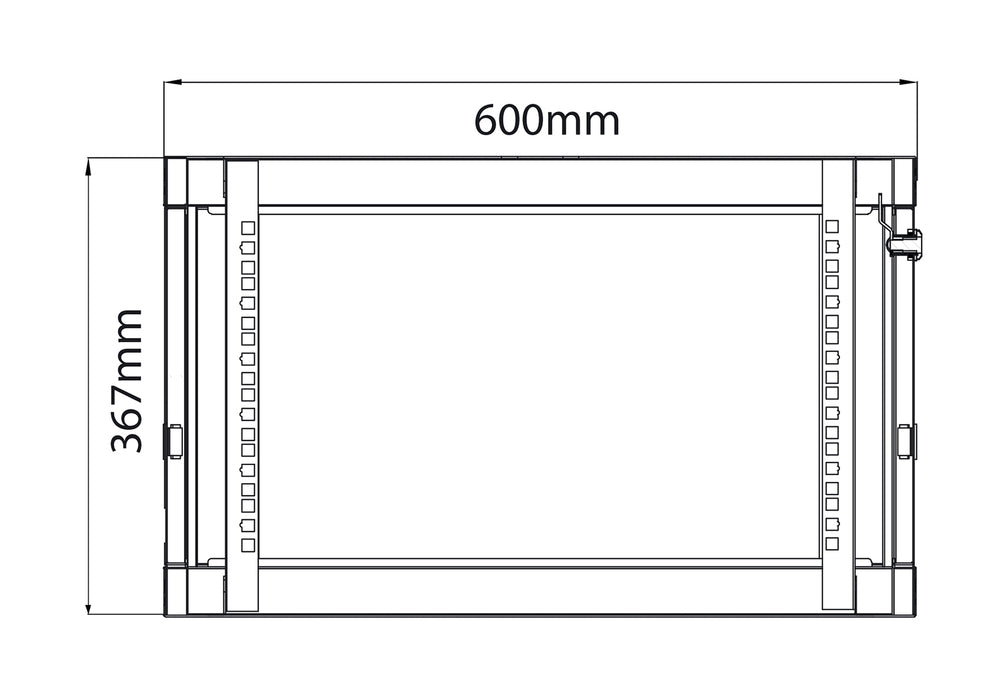

  • Width: 600mm

Adastra Rack Cabinet PDF Instruction Manual

DOWNLOAD HERE
