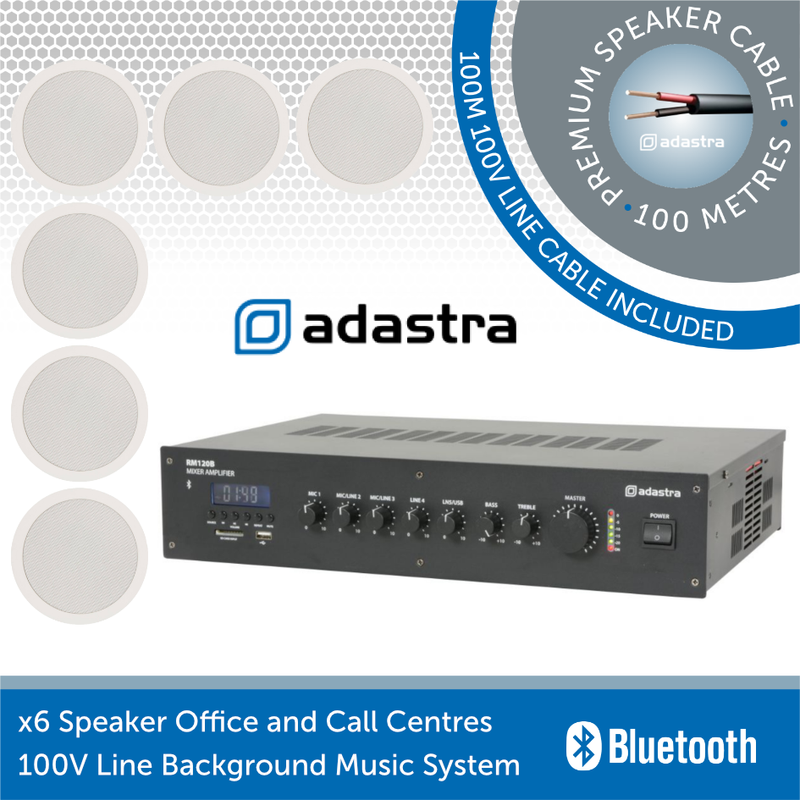

Adastra 6 Speaker Background Music System for Offices and Call Centres - White Ceiling Speakers (6.5")
Our 6 speaker background music system is a perfect installation choice for small-medium sized offices and call centres, looking for a high-quality sound system for public address and background music.
Featuring 6 high quality ceiling speakers, the kit allows for an easy and quick installation and works alongside the majority of CD/Media Players.
The 5 channel Adastra RM120B amplifier has a built in USB/SD audio player and integral FM tuner allowing you to play your own playlists through or tune to the radio. Bluetooth connectivity is also accessible via this versatile amplifier ideal for connecting your smartphone or tablet with one simple connection. An XLR input allows connection of a microphone, either handheld or paging, and is great for announcements.
The 100V mixer amplifier has on-board bass and treble controls as well as individual microphone and master volume to suit your operating space. With the including rack ears you can mount your amplifier into any 2U 19" rack ideal for discreet storage.
Included in Package
-
ADASTRA RM120B 120W 100V MIXER AMPLIFIER (953.114)
-
4 x Adastra CC6V 6.5" 100V Line Ceiling Speakers (952153)
-
1 x 100m Double Insulated Speaker Cable (807090)
Adastra RM120B 5 channel 100V Mixer Amp with Bluetooth
This versatile unit with Bluetooth connectivity, integral USB/SD audio player and integral FM tuner provides a comprehensive control centre for commercial sound installations.
Inputs include a balanced XLR for microphone with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, one of which can be fed from the internal USB/SD player with built-in FM tuner and Bluetooth receiver. The Bass & Treble EQ and Master volume can control the overall output and can be used to power either 8 Ohms or 100V line speakers.
Main Features
-
5 input channels - 120W power RMS
-
Bluetooth Receiver: (max 5 meters)
-
Integral USB + SD card inputs
-
FM Radio Tuner
-
External D.C. power option
-
8 ohms or 100V line speaker output
-
2U 19" rack mountable
-
Supplied with rack-mount ears

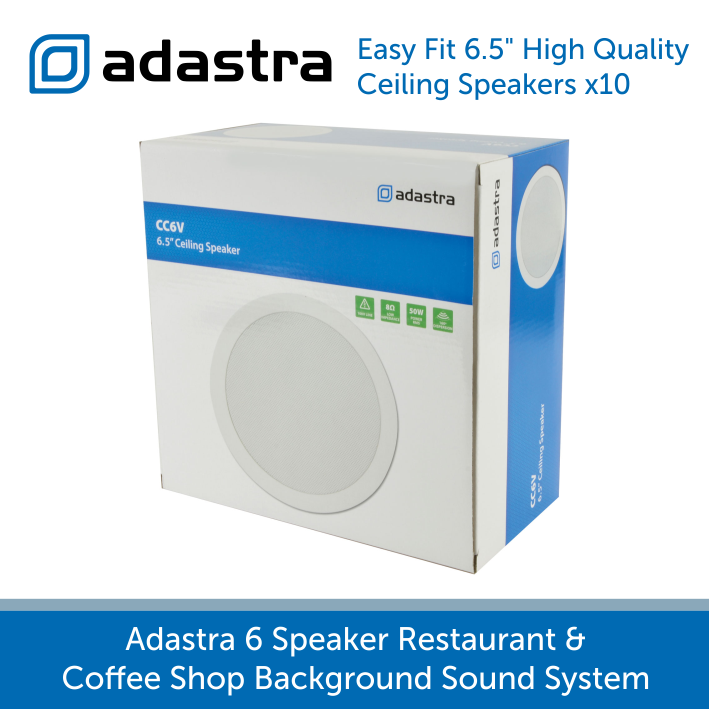

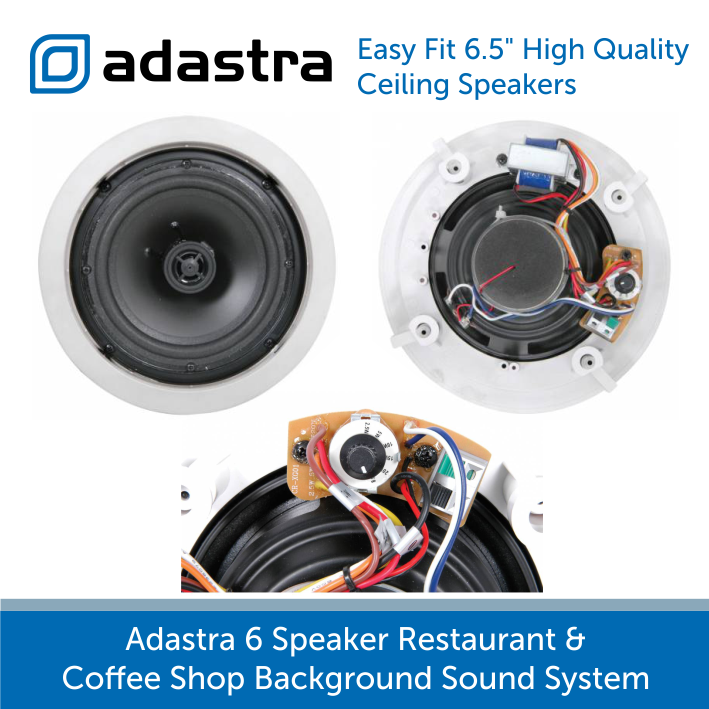

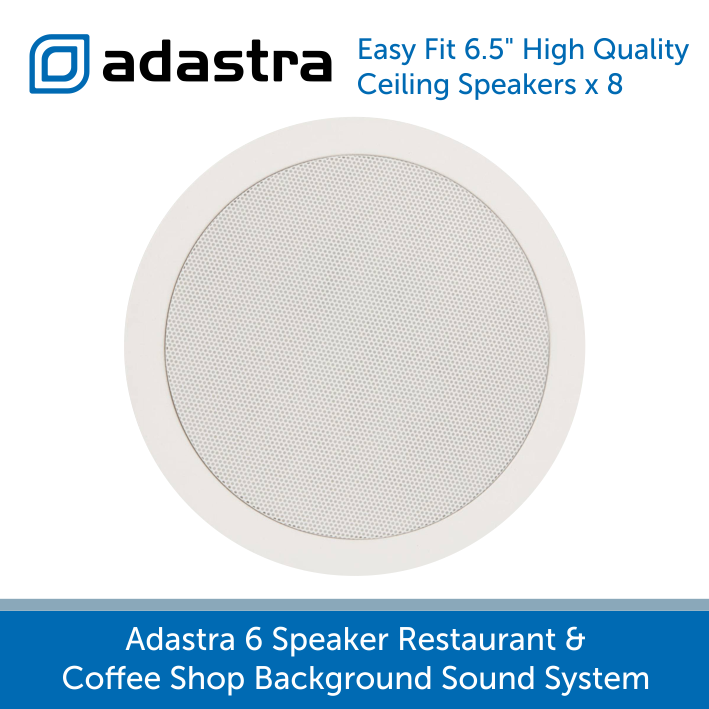

Adastra CC6V 6.5" 100V Line Ceiling Speaker
Our Adastra 6.25" Background Ceiling Speaker is a perfect installation for pubs, bars, restaurants and similair environments. Featuring a rotary switch on the back, the speaker can be tapped to 2.5, 5, 10, 15 or 20W via 100V Line aswell as an 8ohm option. This is perfect as it can be altered to almost any environment depending on how many speakers you have and the load of your amplifier.
Main Features
- Unique patented fitting mechanism
- Easy fast fit method
- High quality chassis speaker
- Slimline flush fitting grille
- Low mounting depth
- 6 wattage tappings
- Concealed fitting
An example of how you could set your speakers up with this amplifier follows...

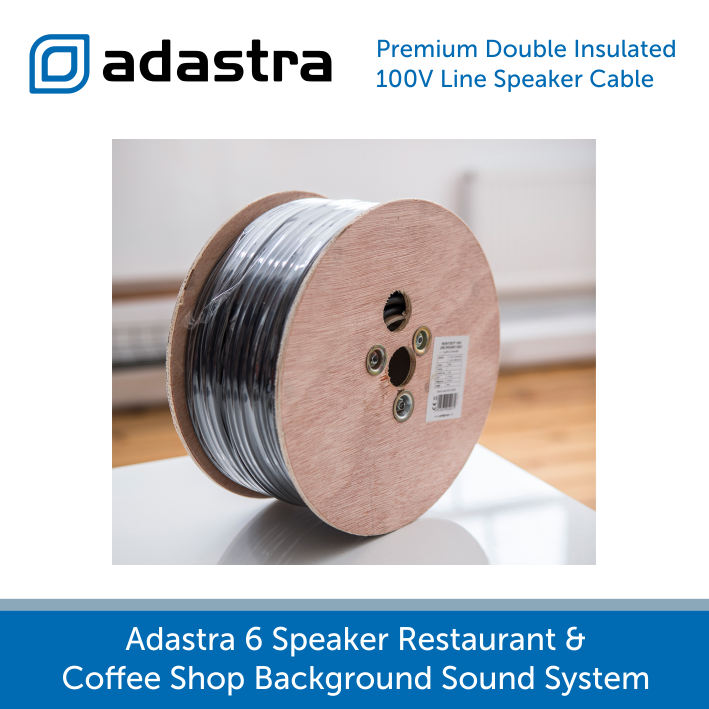

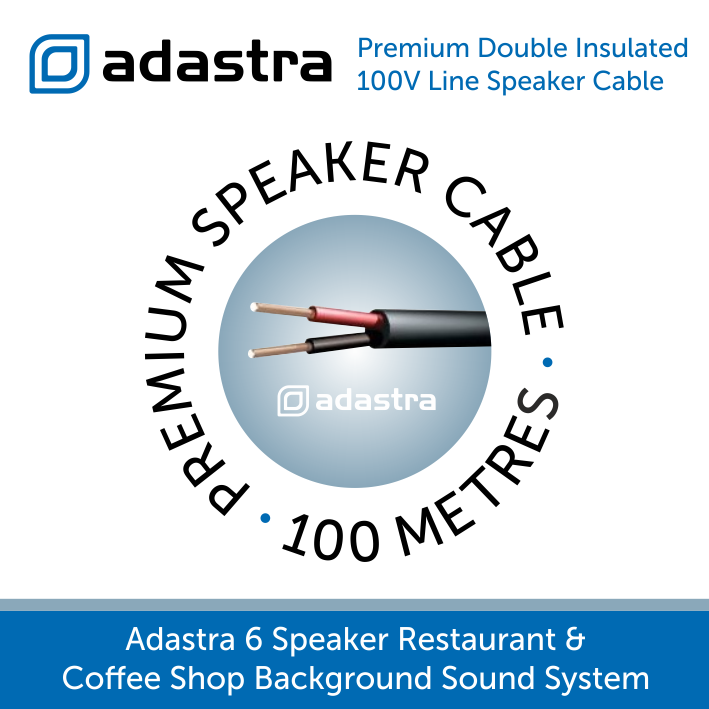

Adastra Premium Double Insulated 100V Line Speaker Cable - 100m
Our 100V line cable by Adastra is a highly flexible speaker cable designed to be used with our 100V line amplifiers to connect up to 12 ceiling of wall mounted speakers.
For internal use only.
See SPECIFICATION tab for technical specs
SPECIFICATION
ADASTRA RM120B 120W 100V MIXER AMPLIFIER (953.114)
- Power supply: 110/240Vac, 50/60Hz (IEC)
- DC power: 24Vdc (screw terminals)
- Inputs Mic: XLR, 2 x mic/line jack, 2 x RCA line
- Input sensitivity: mic 1: (balanced) -53dBV
- Input impedance: mic 1: 5k Ohms
- Input sensitivity: line (unbalanced): -15dBV (-18.5dBV line 5)
- Input impedance: inputs 2-5: 1k Ohms
- Line output: RCA
- Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
- Equalizer: bass: 100Hz ±10dB
- Equalizer: treble: 10kHz ±10dB
- Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
- Phantom power: +20V (mic 1 input)
- Audio source: USB/SD player, FM tuner and Bluetooth receiver
- Bluetooth version: 2.0
- THD: <1.0%

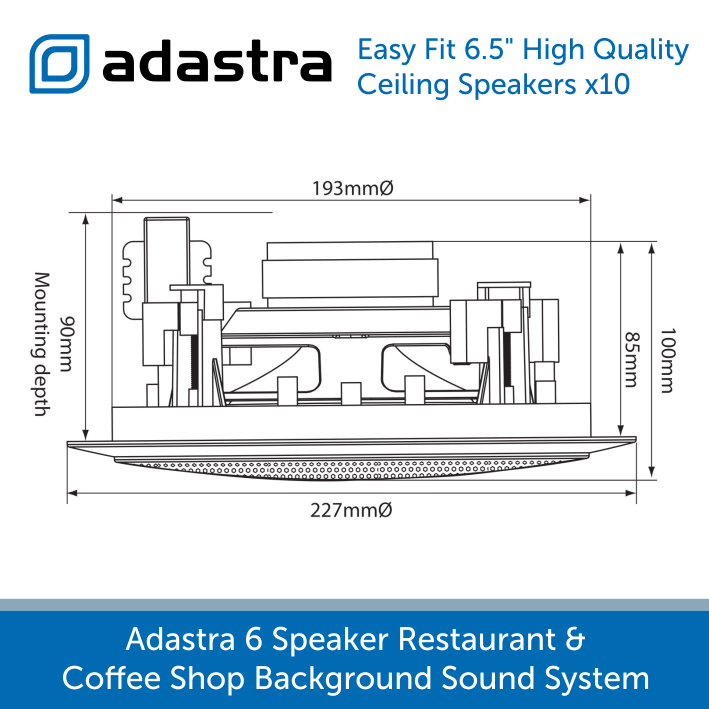

ADASTRA CC6V 6.5" 100V LINE CEILING SPEAKERS (952.153)
- Version: CC6V 6.5"
- Woofer: 165mmØ (6.5")
- Tweeter: 38mmØ (1.5")
- Frequency response: 70Hz - 20kHz
- Power max.: 8 Ohms100W
- Power rms: 8 Ohms50W
- Power rms: 100V line20W
- Cutout: 193mmØ
- Mounting depth: 90mm
- SPL: @ 1W/1m87dB (±2dB)
- Tappings: 2.5, 5, 10, 15, 20W & 8 Ohms
- Dimensions: 100 x 227mmØ
- Weight: 1.25kg
100m DOUBLE INSULATED SPEAKER CABLE (807.090)
- CSA2: x 0.75mm²
- Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
- Dimensions: 7mmØ
- Current: 6A max.
- Sheath: Black PVC
- Length: 100m
ABOUT ADASTRA
For over 60 years Adastra has serviced the needs of the background audio market as a fully established brand name, celebrated for quality and excellence, and they continue to develop their range in order to remain at the forefront of the industry.
With a comprehensive range of associated products also available, including speaker brackets, rack cabinets and microphones. You can see why Audio Volt and Adastra are a match made in heaven.
