Adastra BCV Series Indoor Wall Speakers for Background Music and Voice - Black or White

by Adastra
£19.95 (inc. VAT)
SKU 952.711
Model (Size)
Colour
DETAILS

The Adastra BCV Series indoor wall speakers are designed to deliver high-quality sound for 100V Line or low impedance installations.

These professional installation speakers are designed for a variety of commercial installations that require good quality audio playback such as cafes, bars, restaurants, hotels, retail stores and shops etc.

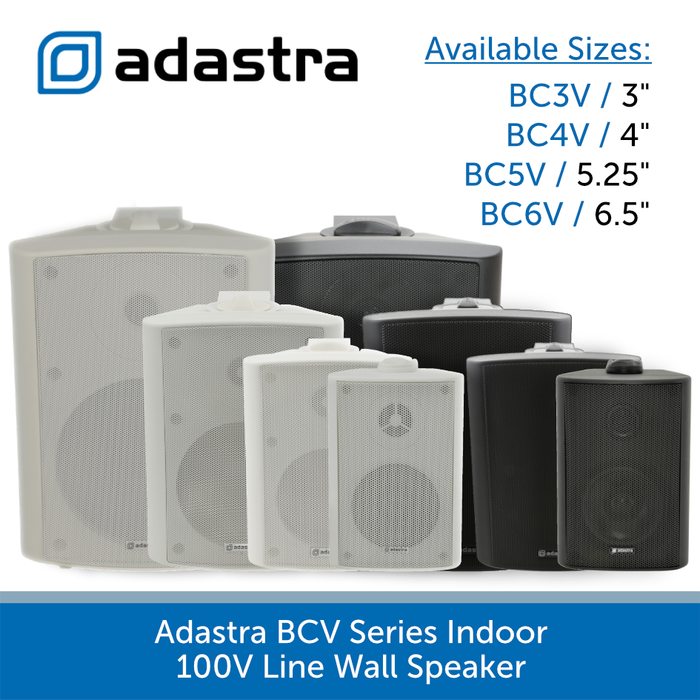

The Adastra BCV Series is composed of 4 models from the ultra-compact BC3V's perfect for environments where space is at a premium to the larger BC5V and BC6V's that are great for bar areas and function rooms.

BCV Series

  • BC3V - 3", 6W

  • BC4V - 4", 20W

  • BC5V - 5.25", 30W

  • BC6V - 6.5", 40W

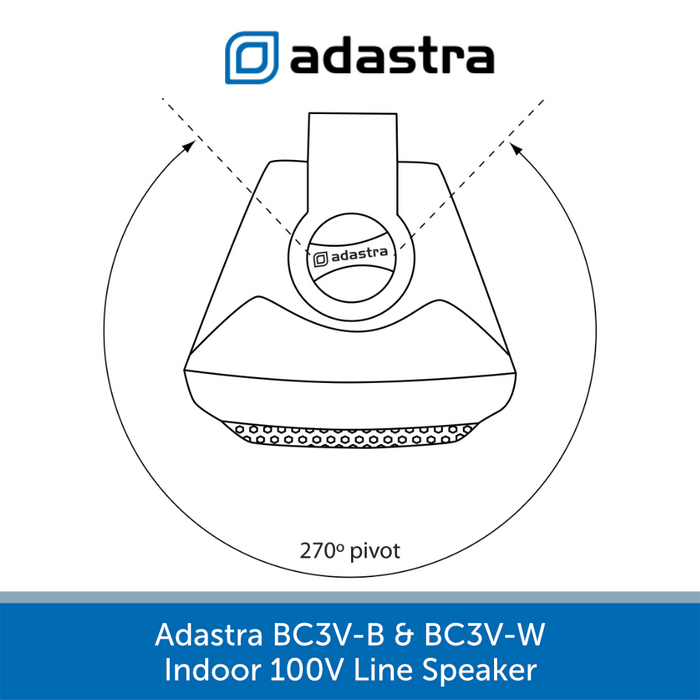

The BCV-series speakers are each supplied with a wall-mounting bracket which

allows 90° lateral adjustment. This allows for multiple speakers placements both vertically and horizontally.

The Adastra BCV speakers are designed for use with 100V Line audio systems and all have multiple power tappings for a variety of applications. They do also have an 8 Ohm power option for low impedance systems.

  • BC3V - 1.5W, 3W, 6W & 8 Ohms

  • BC4V - 2.5W, 5W, 10W, 20W & 8 Ohms

  • BC5V - 5W, 10W, 20W, 30W & 8 Ohms

  • BC6V - 5W, 10W, 20W, 40W & 8 Ohms

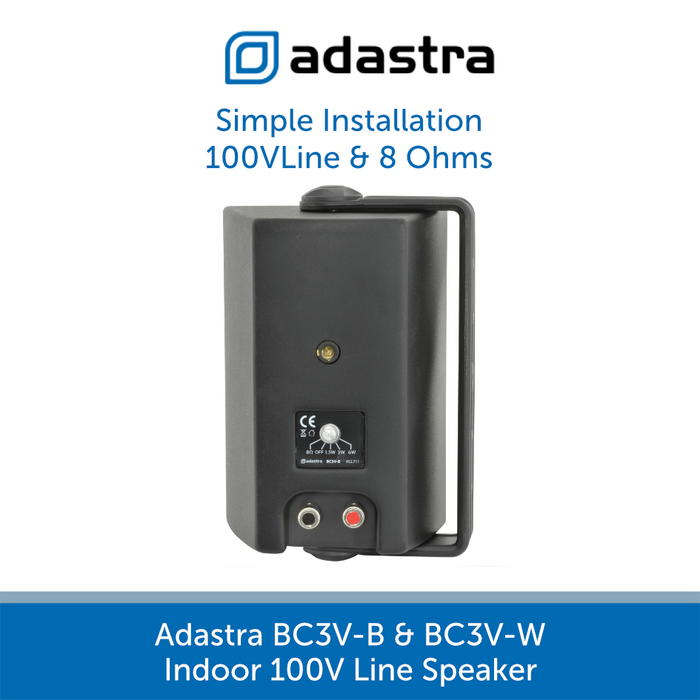

The BCV Series speakers are quick and easy to install. Speaker cable is connected via 2 spring terminals at the rear of the speaker.

Adastra BCV Series Speakers Key Features

  • Perfect for background music and voice

  • 2-Way speaker system with crossover network

  • Rotary selector switch for 100V Line tappings or 8 Ohms

  • Wall mounting bracket supplied

  • Spring terminal connection

  • Available in Black or White

SPECS & DOWNLOADS

Adastra BC3V Wall Speaker Specifications

  • Model: BC3V-W & BC3V-B
  • Colour: White or Black
  • Woofer: 75mmØ (3'') reinforced paper cone
  • Tweeter: 12mm (0.5'') polymer HF driver
  • Frequency response: 120Hz - 20kHz
  • Frequency response: 120Hz - 20kHz
  • Power max.: 8 Ohms: 60W
  • Power RMS: 8 Ohms: 30W
  • SPL: @ 1W/1m: 87dB
  • Tappings: 6W, 3W, 1.5W + 8 Ohms
  • Impedance: 100V1.6k, 3.3k, 6.6k Ohms
  • Dimensions: 106 x 153 x 98mm
  • Weight: 900g

    Adastra BC4V Wall Speaker Specifications

    • Model: BC4V-B and BC4V-W
    • Colour: Black or White
    • Woofer: 100mmØ (4'') reinforced paper cone
    • Tweeter: 25mm (1'') balanced dome
    • Frequency response: 110Hz - 20kHz
    • Power max. : 8 Ohms: 70W
    • Power RMS : 8 Ohms: 35W
    • SPL @ 1W/1m: 88dB
    • Tappings: 20W, 10W, 5W, 2.5W + 8 Ohms
    • Impedance : 100V: 500, 1k, 2k, 4k Ohms
    • Dimensions: 150 x 195 x 150mm
    • Weight: 1.63kg



    Adastra BC5V Wall Speaker Specifications

      • Model: BC5V-B and BC5V-W
      • Colour: White or Black
      • Woofer: 130mmØ (5.25'') reinforced paper cone
      • Tweeter: 25mm (1'') balanced dome
      • Frequency response: 100Hz - 20kHz
      • Frequency response: 100Hz - 20kHz
      • Power max.: 8 Ohms90W
      • Power RMS: 8 Ohms45W
      • SPL @ 1W/1m: 89dB
      • Tappings: 30W, 20W, 10W, 5W + 8 Ohms
      • Impedance: 100V500, 1k, 2k, 4k Ohms
      • Dimensions: 180 x 235 x 175mm
      • Weight: 2.38kg

      Adastra BC6V Wall Speaker Specifications

      • Model: BC6V-W & BC6V-B
      • Colour: White or Black
      • Woofer: 165mmØ (6.5'') reinforced paper cone
      • Tweeter: 25mm (1'') balanced dome
      • Frequency response: 90Hz - 20kHz
      • Power max.: 8 Ohms: 120W
      • Power RMS: 8 Ohms: 60W
      • SPL @ 1W/1m: 89dB
      • Tappings: 40W, 20W, 10W, 5W + 8 Ohms
      • Impedance: 250, 500, 1k, 2k Ohms
      • Dimensions: 220 x 280 x 210mm
      • Weight: 3.08kg

      Adastra BCV Series Speakers - PDF Download File

      Download the User Manual HERE
