Adastra CC Series 2-Way 100V Ceiling Speakers, Commercial-grade - CC5V, CC6V, CC8V

by Adastra
£23.49 (inc. VAT)
SKU 952.184
Size (Model)
DETAILS

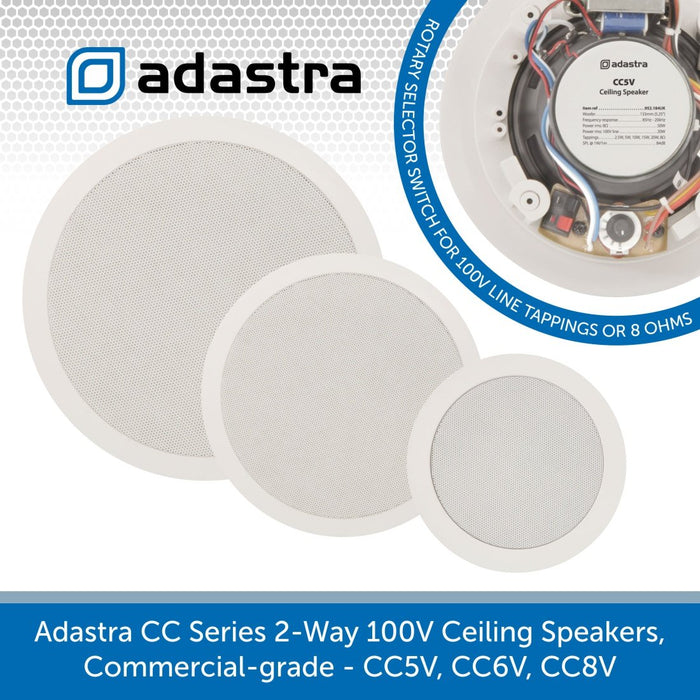

Adastra CC Series commercial grade 2-way ceiling speakers for premium quality background music and speech. Adastra CC5V, CC6V and CC8V.

The Adastra CC Series ceiling speakers offer commercial-grade audio playback great for background music systems in restaurants, pubs, cafes, retail stores, offices and environments alike.

These 2-way quick fit ceiling speakers operate on 100V Line and are compatible with any 100V Line mixer or power amplifier. They feature multiple 100V Line power tappings enabling you to balance each speaker to the area it's being installed into. For example, you may have an area that needs to be quieter than everywhere else i.e. the reception area or toilets. The power tappings can be selected via the rotary dial located on the back of the speaker.

Adastra CC Series Ceiling Speaker Power Tappings

  • CC5V: 2.5, 5, 10, 15, 20W & 8 Ohms

  • CC6V: 2.5, 5, 10, 15, 20W & 8 Ohms

  • CC8V: 10, 20, 30, 40, 50W & 8 Ohms

For easy and quick installation the speaker has spring loaded terminals that simply click into place once your cable is inserted. A 160° dispersion angle enables you to strategically position your speaker in an area that provides equal sound throughout, instead of one area being louder than another.

Adastra CC Series Ceiling Speakers Key Features

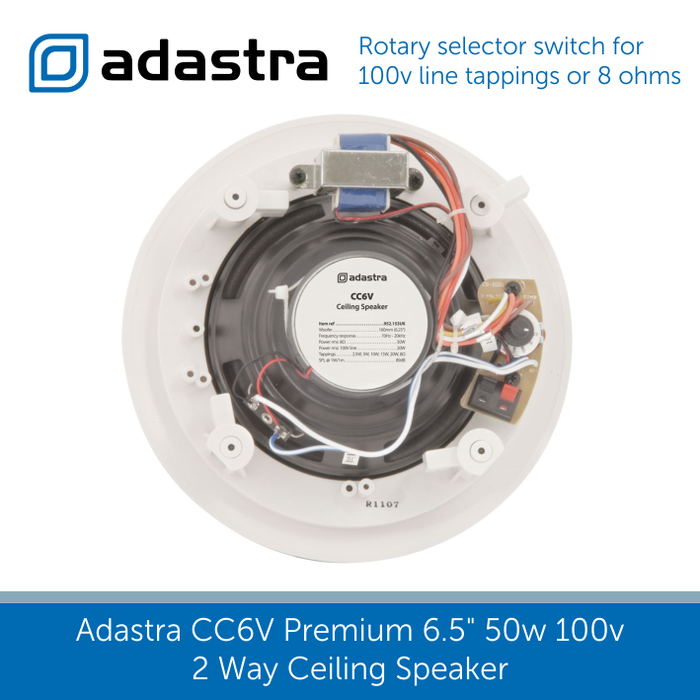

  • Rotary selector switch for 100V line tappings or 8 Ohms

  • Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness

  • Spring loaded terminals for easy connection

SPECS & DOWNLOADS

Adastra CC5V

  • Version: CC5V 5.25"
  • Frequency response: 85Hz - 20kHz
  • Woofer: 133mmØ (5.25")
  • Tweeter: 38mmØ (1.5")
  • Power rms 8 Ohms: 50W
  • Power rms 100V line: 20W
  • Cutout: 165mmØ
  • Mounting depth: 84mm
  • SPL @ 1W/1m: 84dB (±2dB)
  • Tappings: 2.5, 5, 10, 15, 20W & 8 ohms
  • Dimensions: 88 x 202mmØ
  • Weight: 1kg

Adastra CC6V

  • Version: CC6V 6.5"
  • Woofer: 165mmØ (6.5")
  • Tweeter: 38mmØ (1.5")
  • Frequency response: 70Hz - 20kHz
  • Power max.: 8 Ohms100W
  • Power rms: 8 Ohms50W
  • Power rms: 100V line20W
  • Cutout: 193mmØ
  • Mounting depth: 90mm
  • SPL: @ 1W/1m87dB (±2dB)
  • Tappings: 2.5, 5, 10, 15, 20W & 8 Ohms
  • Dimensions: 100 x 227mmØ
  • Weight: 1.25kg

Adastra CC8V

  • Version: CC8V 8"
  • Woofer: 200mmØ (8")
  • Tweeter: 44mmØ (1.75")
  • Frequency response: 60Hz - 20kHz
  • Power max.: 8 Ohms: 120W
  • Power rms: 8 Ohms: 60W
  • Power rms: 100V line: 50W
  • Cutout: 238mmØ
  • Mounting depth: 95mm
  • SPL @ 1W/1m: 89dB (±2dB)
  • Tappings: 10, 20, 30, 40, 50W & 8 Ohms
  • Dimensions: 102 x 271mmØ
  • Weight: 1.85kg
