Audiokraft 6.5 inch Premium 60W Ceiling Speakers & Adastra A4 Amp - Dual-zone system

£549.00 (inc. VAT)
SKU 953404-6CLB
Amount of Speakers

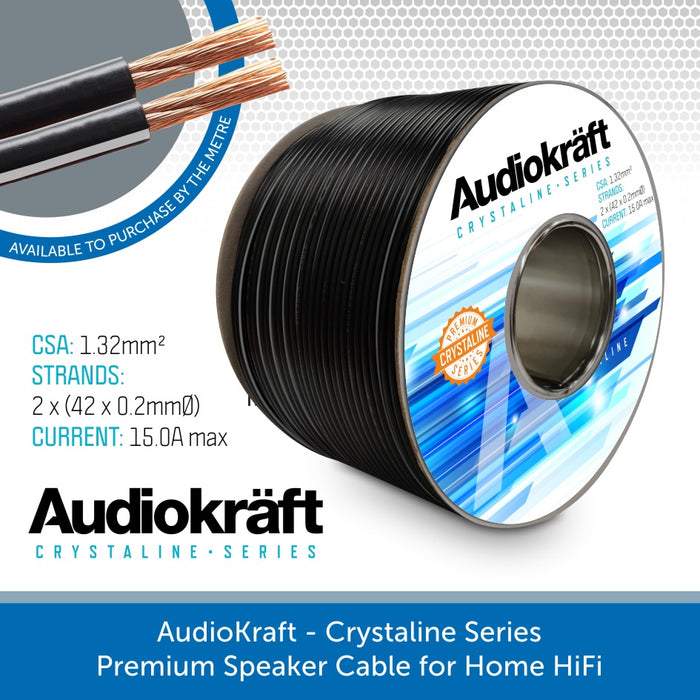

Speaker Cable
DETAILS

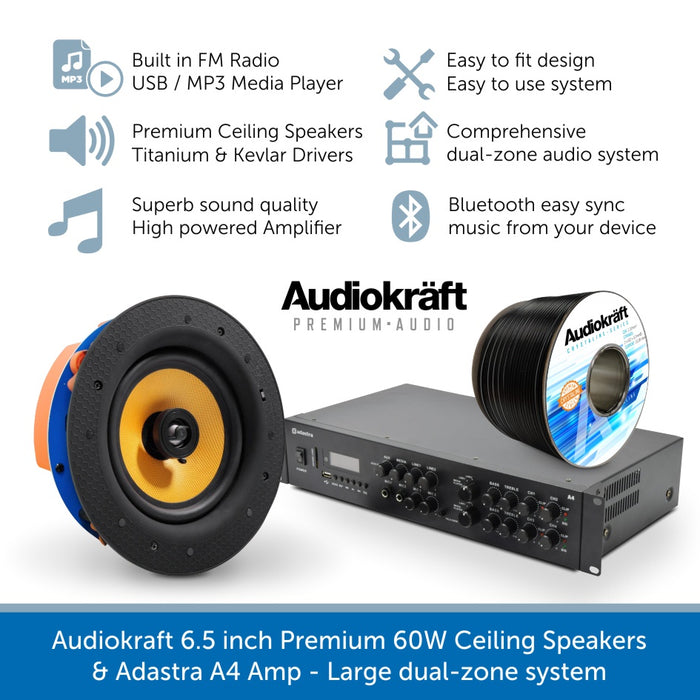

Audiokraft 6.5 inch Premium 60W Ceiling Speakers & Adastra A4 Amp - Dual-zone systemThis high-quality Audiokraft dual zone Bluetooth music system comes complete with the more powerful Adastra A4 4 x 200W Stereo Amplifier & up to 8 Premium 60W In-Ceiling Speakers.

A superb sounding music system offering dual-zone PA with audio source selection & volume control for each zone: designed for multi-zone audio installations into bars, restaurants, retail environments, and homes etc.

The Adastra A4 Mixer Amplifier features Bluetooth Connectivity, an FM radio tuner, and a USB/MP3 media player offering seamless audio streaming from any audio device.

Key Features:

  • High-powered 4x200W Music System
  • 2-Zone control - Audio source selection & volume control
  • Bluetooth, FM Radio Tuner, USB/MP3 Media Player
  • Supplied with 6 x Premium 6.5" In-Ceiling Speakers
  • Perfect for any home or commercial environment
  • Ideal for high-end music playback
  • Quick and easy to install

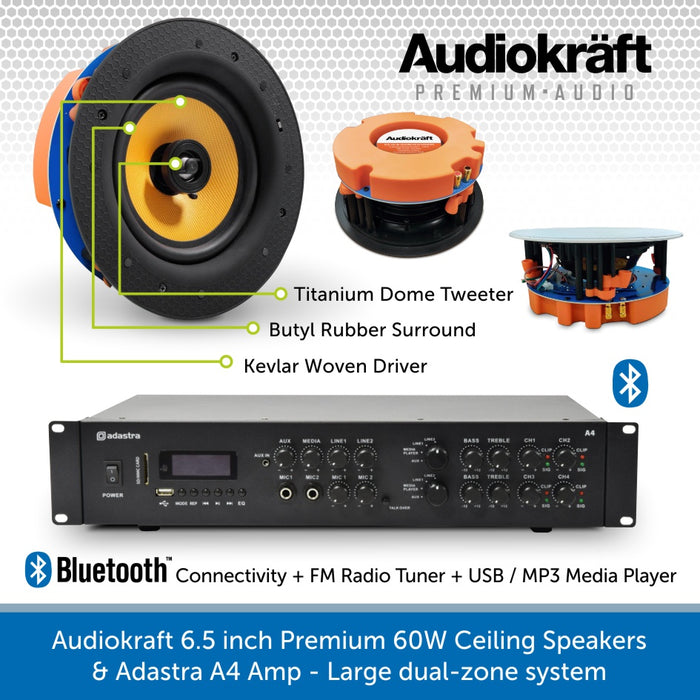

Adastra A4 4 x 200W Mixer Amplifier

Fully featured PA amplifier with 2 independent stereo zone outputs and mixer section for 2 microphones and a stereo audio source.

An inbuilt media player section offers playback of MP3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner.

A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to both output zones at all times.

2 pairs of speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels to deliver up to 4 x 200W.

Designed to offer installers a comprehensive dual-zone PA for bars, restaurants and function rooms.

Audiokraft 6.5 inch Premium 60W Ceiling Speakers & Adastra A4 Amp - Dual-zone system

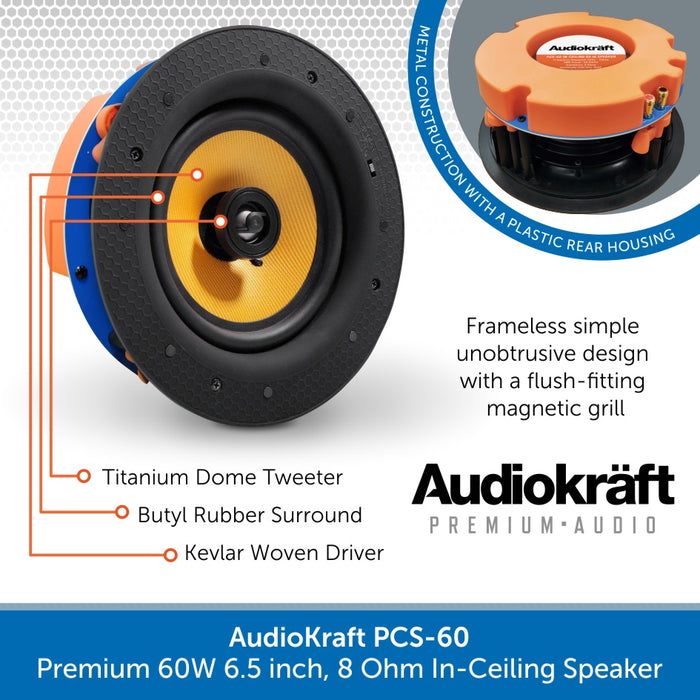

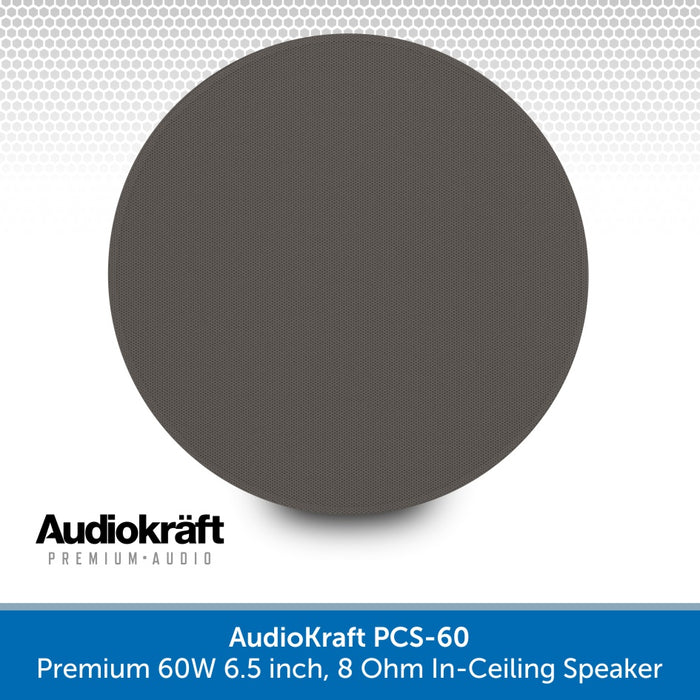

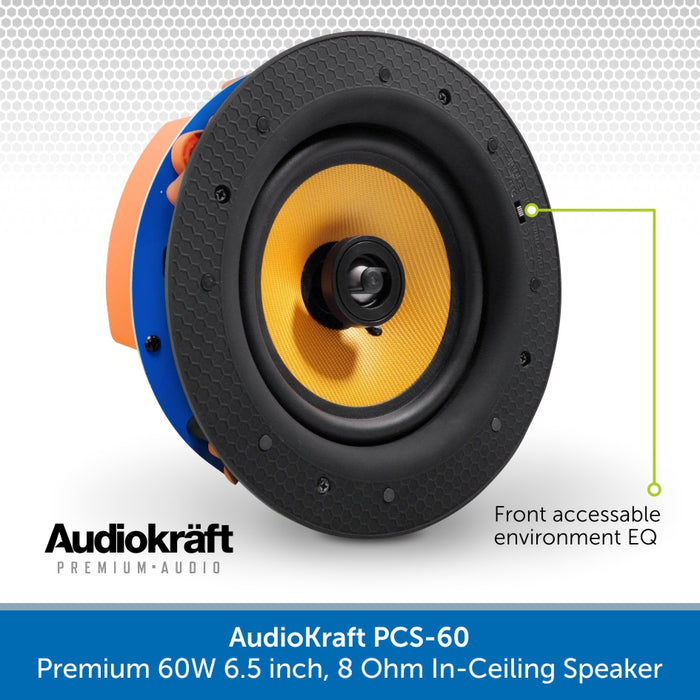

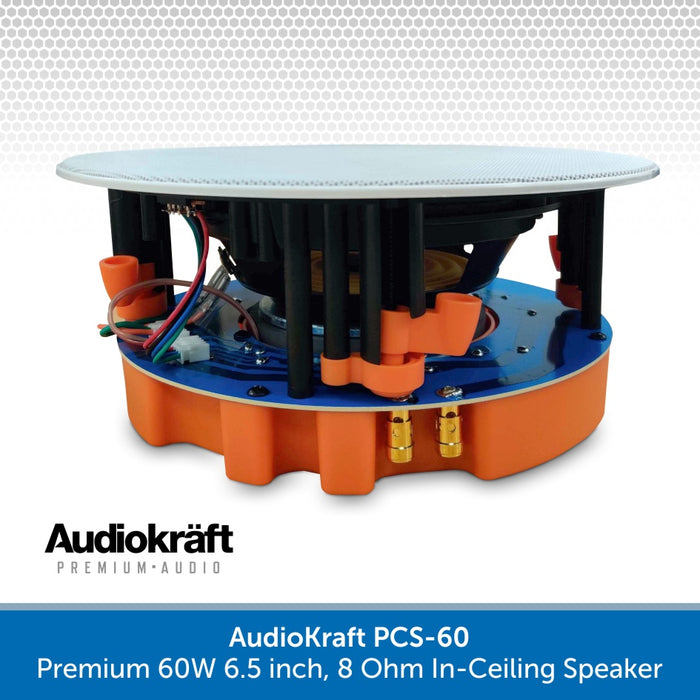

Audiokraft PCS-60 Premium 6.5" In-Ceiling Speakers

The PCS-60 is a premium ceiling speaker designed for high-quality music reproduction in background and foreground applications.

This can be part of a 2.1, 5.1 or 7.1 speaker system for a professional home entertainment install or in a commercial environment where a little extra volume and depth is required. The CS60 speaker works great with high-grade amplifiers from major brands such as Teac, Pioneer and Yamaha.

The easy fit system uses the classic dogleg fixings for fast installation and your termination is provided by gold plated push fit speaker terminals for an optimal connection.

Rated at 60 watts | 8 Ohms the PCS-60 provides a full and detailed sound that rivals speakers three times its value.

Audiokraft 6.5 inch Premium 60W Ceiling Speakers & Adastra A4 Amp - Dual-zone system

Audiokraft 6.5 inch Premium 60W Ceiling Speakers & Adastra A4 Amp - Dual-zone system


SPECS & DOWNLOADS

Adastra A4 Mixer Amplifier Specifications

  • Power supply: 230Vac, 50Hz (IEC)
  • Power consumption max.: 360W
  • Fuse: F5A, 250V
  • Output power rms @ 4 Ohms: 4 x 200W
  • Output power rms @ 8 Ohms: 4 x 100W
  • Amplifier: construction: Class D
  • Frequency response: 20Hz - 20kHz ±0.5dB
  • Microphone inputs: 2 x 6.3mm jack (mono)
  • Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
  • Input sensitivity : line: 0.775Vrms
  • Auxiliary input: 3.5mm stereo jack
  • Input sensitivity : aux: 0.480Vrms
  • Input impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
  • Audio source: USB/SD mp3 playback, FM tuner, BT receiver
  • Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
  • Line output: 2 x RCA
  • Speaker outputs: 4mm binding posts (4 channels)
  • Antenna connection: F type (FM tuner)
  • Output controls: 2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4
  • Dynamic range: 92dB
  • THD: +N <0.1%
  • Protection: Thermal, over-current, over-voltage, short-circuit
  • Dimensions: 482 x 240 x 88mm
  • Weight: 5.98kg

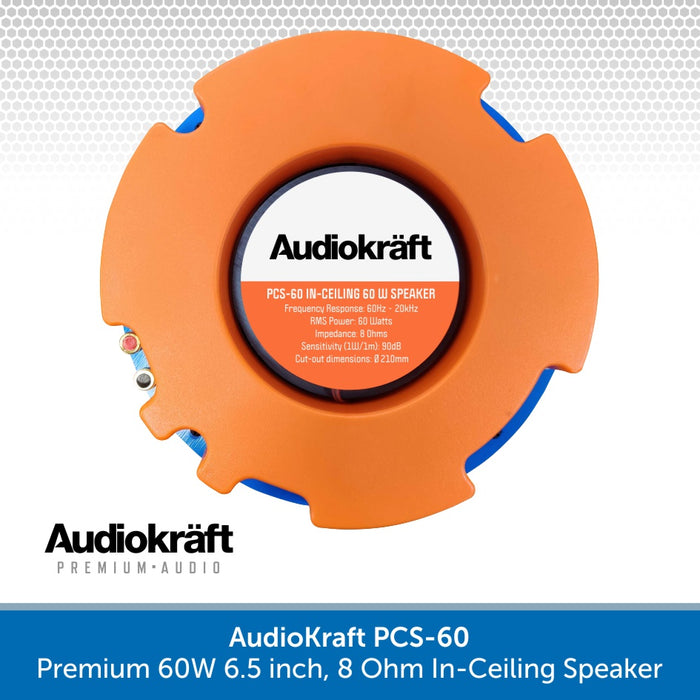

    Audiokraft PCS-60 Ceiling Speakers Specifications

    • Nominal Impedance: 8 Ohms
    • Power (RMS): 60W
    • Driver: 6.5 inch
    • Driver Material: Kevlar Woven Cone
    • Single Tweeter: 0.75 inch
    • Tweeter Material: Titanium Dome
    • Frequency Response (±3db): 60 Hz-20 kHz
    • Efficiency: 90dB

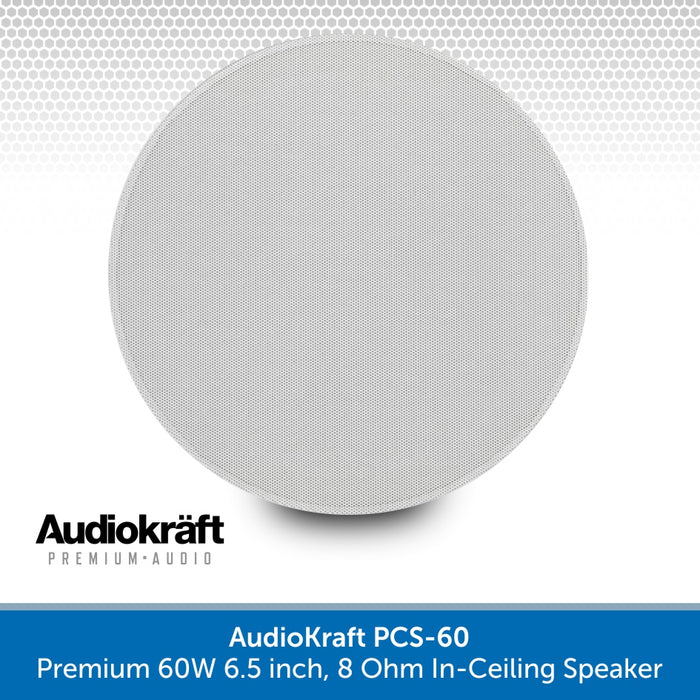

    • Colour: White (RAL 9010)
    • Dimension: Ø 227mm x 87mm
    • Cut-out Size: Ø 210mm
    • Weight (Net): 1.52kg
    • Weight (Gross): 2.00kg

      Audiokraft PCS-60 - PDF Downloads

      Download the PDF Specification Sheet HERE

      Download the PDF Manual HERE

      ADASTRA A4 4 CHANNEL STEREO PA AMPLIFIER  - PDF FILE DOWNLOAD

      Download the user manual HERE
