Adastra A4 - 4 Channel Stereo PA Amplifier, 4 x 200W, 4 Ohm with Bluetooth

by Adastra
£199.00 (inc. VAT)
SKU 953.404
DETAILS

The Adastra A4 4 Channel Stereo Amplifier is a great choice for small Cafes, Offices, Restaurants & shops looking to install a background music sound system.

The amplifier offers 2 zones across 4 channels each with independent volume adjustment, allowing for complete control across the whole system.

4 x channels at a minimum of 4 ohms allow for a large variety of speakers to be connected. Each channel has individual volume control and an LED signal indicator.

Where the Adastra A4 shines is its zonal capabilities. Channel 1/2 & 3/4 are split into groups with further control. Each pair of channels has EQ control, and source selection meaning different audio sources can be played on each pair of channels.

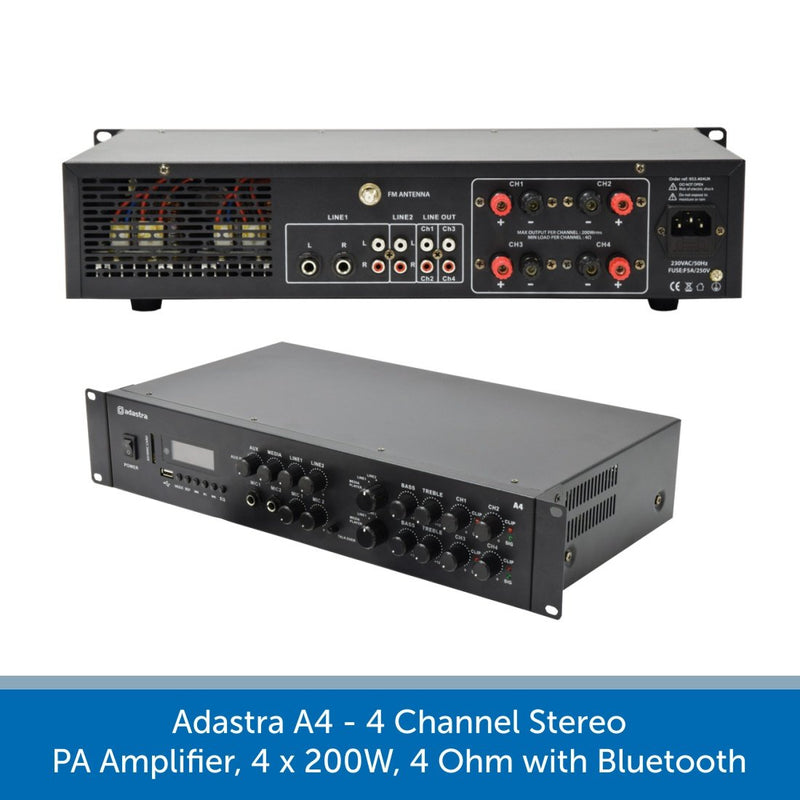

There are 3x stereo inputs, 2x RCA and an L & R 1/4" (6.35mm) Jack, and 2x Mono 1/4" (6.35mm) Jack inputs, indicated as Mic 1 and Mic 2.

There is also a stereo RCA line out, which can be used to expand the system as this will allow you to send the input source to another amplifier, or compatible active sub.

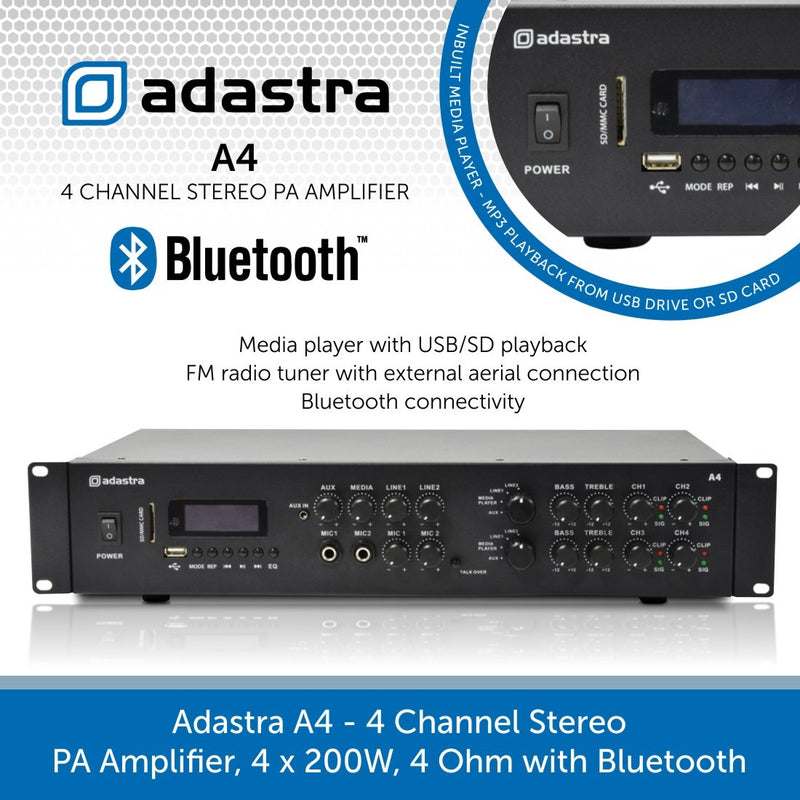

An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner.

Features:

  • Independent stereo playback to 2 separate zones
  • Media player with USB/SD playback
  • FM radio tuner with external aerial connection
  • Bluetooth receiver
Read our blog post about the best amp for restaurants

See SPECIFICATION tab for technical specs

SPECS & DOWNLOADS

ADASTRA A4 4 CHANNEL STEREO PA AMPLIFIER (953.404)

  • Power supply: 230Vac, 50Hz (IEC)
  • Fuse:F5A, 250V
  • Output power rms @ 4 Ohms: 4 x 200W
  • Output power rms @ 8 Ohms: 4 x 100W
  • Amplifier construction:Class D
  • Frequency response: 20Hz - 20kHz ±0.5dB
  • Microphone inputs:2 x 6.3mm jack (mono)
  • Line inputs Line 1:L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
  • Auxiliary input:3.5mm stereo jack
  • Audio source:USB/SD mp3 playback, FM tuner, BT receiver
  • Input controls:Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
  • Line output:4 x RCA
  • Antenna connection:F type (FM tuner)
  • Output controls:2 x source select, 2x Bass, 2x Treble, Ch1, Ch2, Ch3, Ch4
  • Dimensions:482 x 240 x 88mm
  • Weight:5.98kg

ADASTRA A4 4 CHANNEL STEREO PA AMPLIFIER  - PDF FILE DOWNLOAD

Download the user manual HERE
