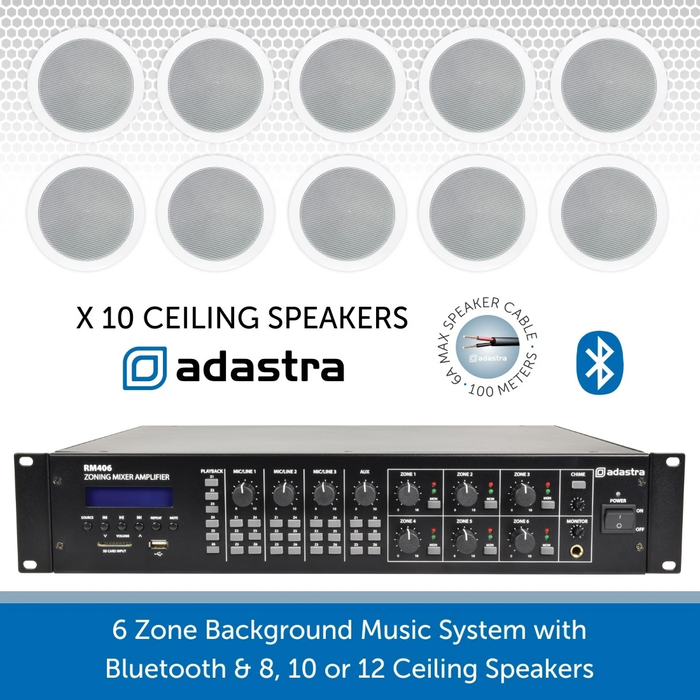

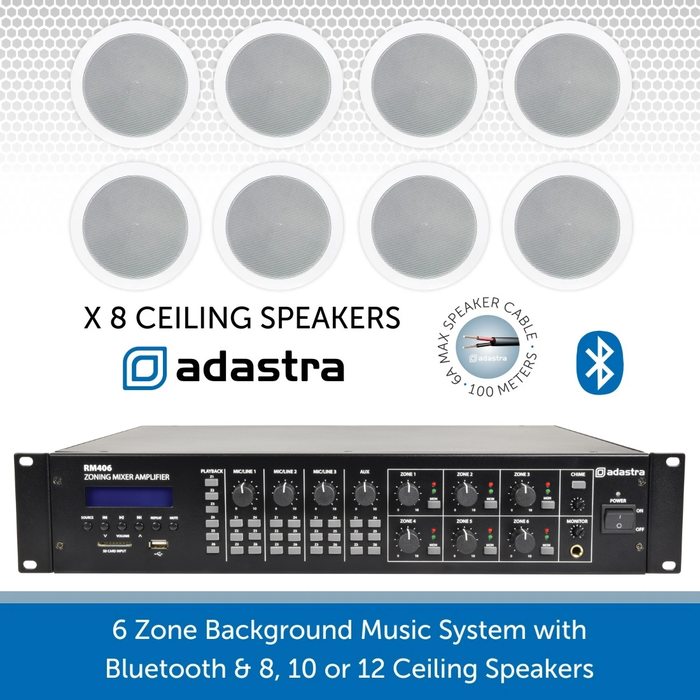

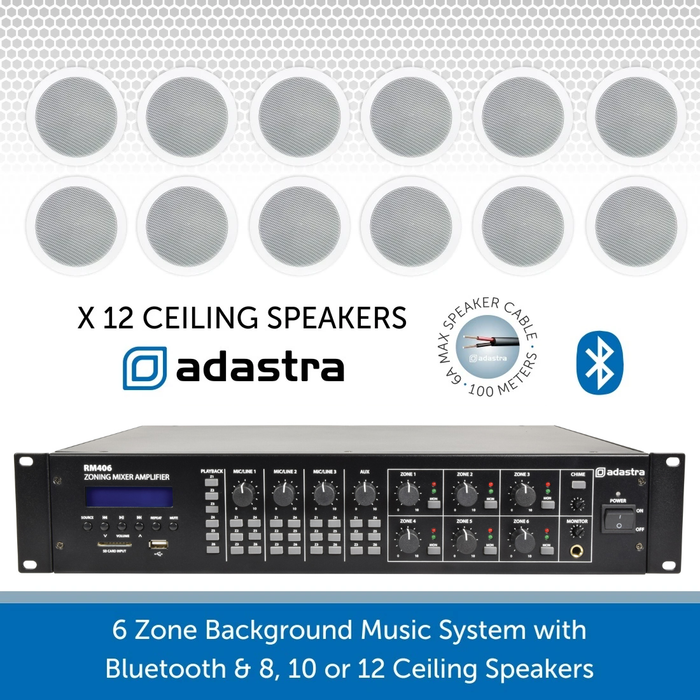

6 Zone Background Music System with Ceiling Speakers, Bluetooth & FM Radio

by Adastra
£549.00 (inc. VAT)
SKU 6-ZONE-8-CS
Amount of Speakers

Our 6-Zone Ceiling Speaker Background Music System with Bluetooth is perfect for cafes, restaurants, bars, and pubs that are looking to play high-quality background music in their venue.

This complete background music system comes with a choice of 8, 10 or 12 flush-mount ceiling speakers, and a 6-zone mixer amplifier that provides volume control & source selection for up to 6 areas/zones.

The professional ceiling speaker background music system for bars and restaurants enables you to wirelessly stream music from a smartphone or tablet via Bluetooth, and/or connect an external media player via the RCA Phono inputs, such as a CD player or laptop.  Alternatively, you can tune into a local FM radio station using the integrated FM tuner. Please note, an FM antenna is not supplied so will need to be sourced.

Our 6 zone background music system is supplied with a 100m drum of heavy-duty double insulated speaker cable, tried and tested for the job.

6-Zone 100V Bluetooth Mixer Amp Key Features

This 6-Zone 100V Mixer Amplifier provides you with complete control of up to 6 areas/zones. The professional mixer amp has dedicated volume control for each zone, as well as source selection so you can play different music in each area.

Simply connect a smartphone or tablet via Bluetooth connectivity and you are ready to wirelessly stream music from Spotify, Youtube, Apple Music, etc. Alternatively, you can an external media player directly to the amp, or use the integrated FM tuner, USB, or SD card readers.

The 100V Bluetooth Mixer Amplifier provides you with a professional solution for adding background music to your venue.

100V Flush-Mount Ceiling Speakers

Our 6" Background Ceiling Speaker is a perfect installation for pubs, bars, restaurants and similar environments. The speaker can be tapped to 3, 6 or 9W via 100v Line. This is perfect as it can be altered to almost any environment depending on how many speakers you have and the load of your amplifier.

For easy and quick installation the speaker has spring loaded fixing mounts which can clamp to a plastered ceiling or ceiling tiles.

Each speaker has a 160° dispersion angle enables you to strategically position your speaker in an area that provides equal sound throughout, instead of one area being louder than another.

Our 6-Zone background music system is supplied with an option of 8, 10 or 12 ceiling speakers.



If you require any further assistance regarding our 100V Line range just contact us on 02476 369890 and one of our experts will be happy to help. Or use our Request a Call Back page for a FREE no obligation system design & consultation service.

    See SPECIFICATION tab for technical specs
    SPECIFICATION

    6-Zone Bluetooth Mixer Amp Specifications

    • Power supply: 110-230Vac, 50/60Hz (IEC)
    • Output power: 6 x 30W rms
    • Audio source: USB/SD/FM/BT audio player
    • Inputs: 3 x mic/line (XLR/jack), auxiliary 2 x RCA
    • Zone outputs: line6 x RCA
    • Zone outputs: speaker6 x terminal outputs 100V/8 Ohms/4 Ohms/com
    • Phantom power: +20V switchable to each XLR
    • Monitor outputs: 6.3mm stereo phones, 2 x RCA line
    • Mute: +24V relay contacts
    • THD: <0.76% @ 1kHz
    • Input impedance: 1k Ohms (mic/line)
    • SNR: 84dB (line), 82dB (mic)
    • Bluetooth version: 2.0
    • Input sensitivity: -11dB (line), -46dB (mic)
    • Frequency response: 100Hz - 24kHz
    • Dimensions: 433 x 89 x 403mm
    • Weight: 13.5kg

        100V Flush-Mount Ceiling Speakers Specifications

        • Version AVCA10-9W: 6"
        • Speaker: 6"
        • Frequency response: 80Hz - 18kHz
        • Cutout: 170mmØ
        • Mounting depth: 90mm
        • SPL @ 1W/1m: 87dB (±2dB)
        • Tappings: 3, 6, 9W
        • Dimensions: 80 x 200mmØ
        • Weight: 0.90kg

          Double Insulated Speaker Cable Specifications

          • CSA: 2 x 0.75mm²
          • Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
          • Dimensions: 7mmØ
          • Current: 6A max.
          • Sheath: Black PVC
          • Length: 100m



          DOWNLOADS

            ABOUT ADASTRA

            View all Adastra 100v Line products by Audio Volt

            For over 60 years Adastra has serviced the needs of the background audio market as a fully established brand name, celebrated for quality and excellence, and they continue to develop their range in order to remain at the forefront of the industry.

            Founded in 1949, Adastra has earned a great reputation for delivering high-quality background audio systems.

            Their products have been created with you the user in mind, offering a flexible and modular approach to installation of music background systems.

            With a comprehensive range of associated products also available, including speaker brackets, rack cabinets and microphones.  You can see why Audio Volt and Adastra are a match made in heaven.
