DETAILS

A 3-zone background music system with volume control for each zone. Bluetooth, DAB radio, with a choice of 4, 6 or 8 discrete in-ceiling speakers. Perfect for adding background music to small cafes, bars, and coffee shops, etc.

This 3-zone music system is perfect for small shop, cafes, offices and more, who need separate volume control across two areas, such as the main restaurant and toilets.

Three external volume controls allow you to adjust the volume of a set of speakers individually and can be placed anywhere to suit, such as under a counter for easy access. This is ideal if you have two areas such as a main room and toilets, where one may want to be louder than the other.

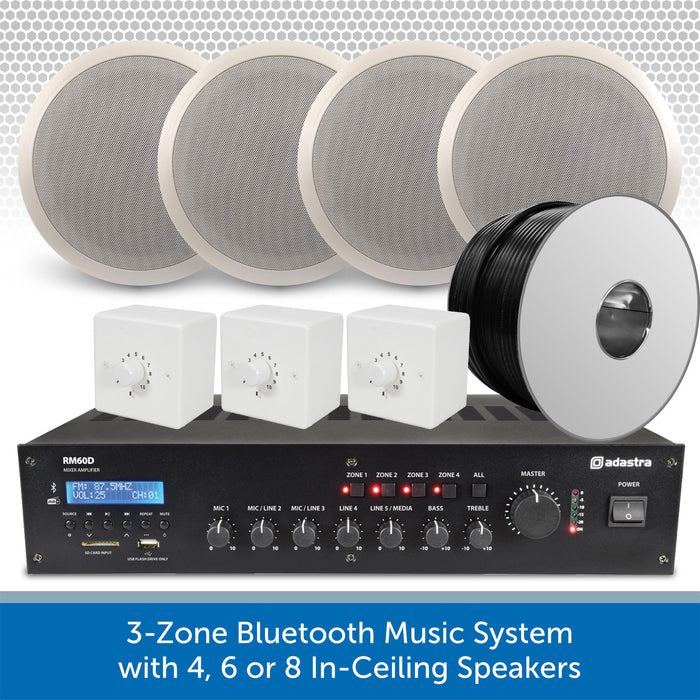

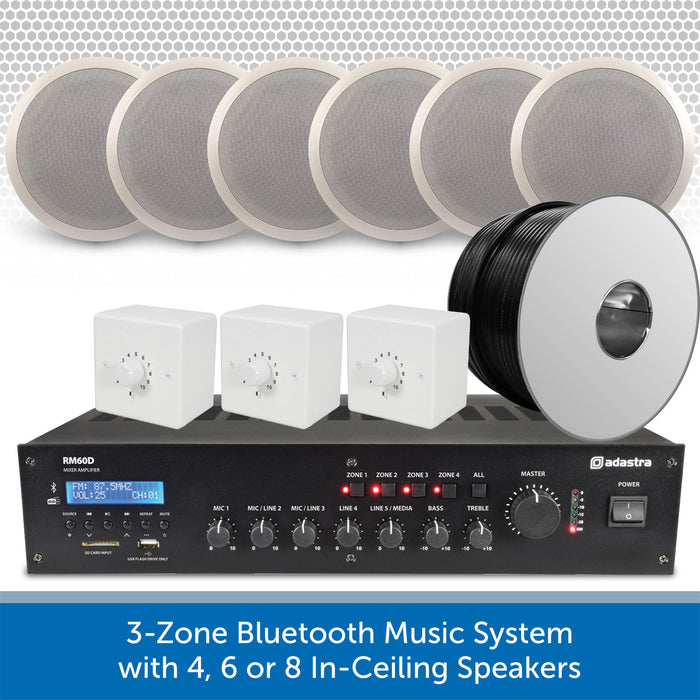

Included is:

• 1x Adastra RM60D Mixer Amp with BT & DAB
• 4,6 or 8 Bosch In-Ceiling Speakers

• 100m Drum Double Insulated Speaker Cable
• 3x 20W Volume Controls with Back Boxes

The music system is ideal for adding a nice background ambience to your venue, creating a comfortable atmosphere that guests will enjoy.

For peace of mind, this background music system comes with a 3-year warranty.

Setup Instructions

For the best performance, set the speakers to 6W MAX. Lower wattages are available on the speaker too. If set to a lower wattage more speakers can be added to the system if required.

The volume controls are wired in-line with the speakers. This means you need to run the speaker cable from the amplifier, to the volume control, and the from the volume control to the speakers.

Every speaker connected after the volume control will be affected.

Adastra 60W Mixer Amplifier Overview

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load.

Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback.

A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered.

Outputs on screw terminals are via 4 switchable zones with a separate "always on" output for priority alert speakers.

Bosch Ceiling Speakers Overview

These in-ceiling speakers offer a discrete and unobtrusive method of music playback, and are ideal where wall-speakers cannot be installed.

For easy and quick installation the speaker has spring-loaded fixing mounts which can clamp to a plastered ceiling or ceiling tiles.

Each speaker has a 160° dispersion angle enables you to strategically position your speaker in an area that provides equal sound throughout, instead of one area being louder than another.

Each speaker is provided with 3 power tappings of 6, 3 & 1.5W. This enables you to balance each speaker to suit the area it's installed into. For example, you may want to reduce the power of the speakers located towards the entrance to create a more welcoming environment.

20W Volume Control Attenuator Overview

A perfect solution for any install needing to control the volume of one or multiple 100V Line loudspeakers.

The attenuator can control the volume for 1 or multiple speakers that's total output is 20W or less.

When an attenuator is installed into a system, the master volume on your amplifier will NOT control anything wired after the switch.

This bundle includes the back box for fixing the control into a wall.

Double Insulated Speaker Cable Overview

The music system is included with 100m of double-insulated 2-core speaker cable, tried and tested for 100V Line operation such as this.

View our full range of Cafe Music Systems HERE

SPECS & DOWNLOADS

Adastra 60W Mixer Amplifier Specifications

• Mains power: 110/240Vac, 50/60Hz (IEC)

• DC power: 24Vdc (screw terminals)
• Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity : mic 1 (balanced): -53dBV
• Input impedance : mic: 1 5k Ohms
• Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
• Input impedance : inputs: 2-5 1k Ohms
• Line output: RCA
• Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
• Equalizer : bass: 100Hz ±10dB
• Equalizer : treble: 10kHz ±10dB
• Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
• Phantom power: +20V (mic 1 input)
• Audio source: USB/SD player, DAB tuner and Bluetooth receiver
• Emergency control: 24V contacts - mute all except Mic.1 when triggered
• Bluetooth version: 5.0
• THD: <1.0%
• Power : output: 60Wrms
• Speaker : outputs: 100V / 4-16 Ohms / COM terminals
• Weight: 4.98kg
• Dimensions: 433 x 320 x 89mm

Bosch 100V In-Ceiling Speakers Specifications

• Transformer Power Tappings:  6W, 3W, 1.5W
• Frequency Response Min:  80Hz
• Frequency Response Max:  18kHz
• External Width:  199mm
• External Depth:  70.5mm
• Loudspeaker Diameter:  6 "
• Behind Panel Depth:  54.5 mm
• Sound Level SPL:  94 dB
• Panel Cutout Diameter:  165 mm
• Operating Temperature Min:  -25 °C
• Input Voltage:  100 V
• Power Max:  9 W
• Colour:  White
• Power Rating RMS:  6 W
• Weight:  620 g
• Operating Temperature Max:  55 °C

20W Volume Contol Attenuator

• Rated power: 20W
• Line input: 70V / 100V
• Attenuation per step: 3dB
• Total attenuation: 33dB
• Attenuation positions: 10 + off
• DC 24V relay: No
• Dimensions (H x W x D): 80 x 80 x 48mm

Double Insulated Speaker Cable Specifications

• CSA: 2 x 0.75mm²
• Strands: 2 x (12 x 0.2mmØ Cu + 12 x 0.2mmØ CCA)
• Dimensions: 7mmØ
• Current: 6A max.
• Sheath: Black PVC
• Length: 100m
