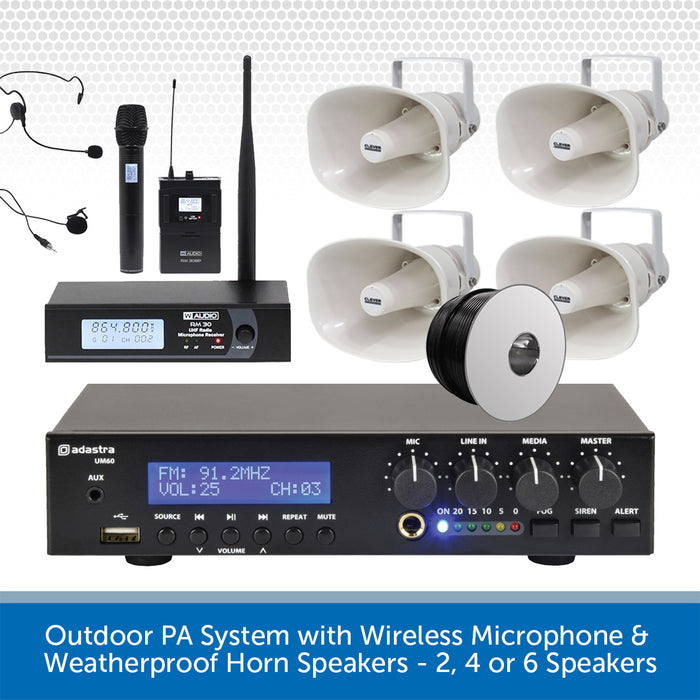

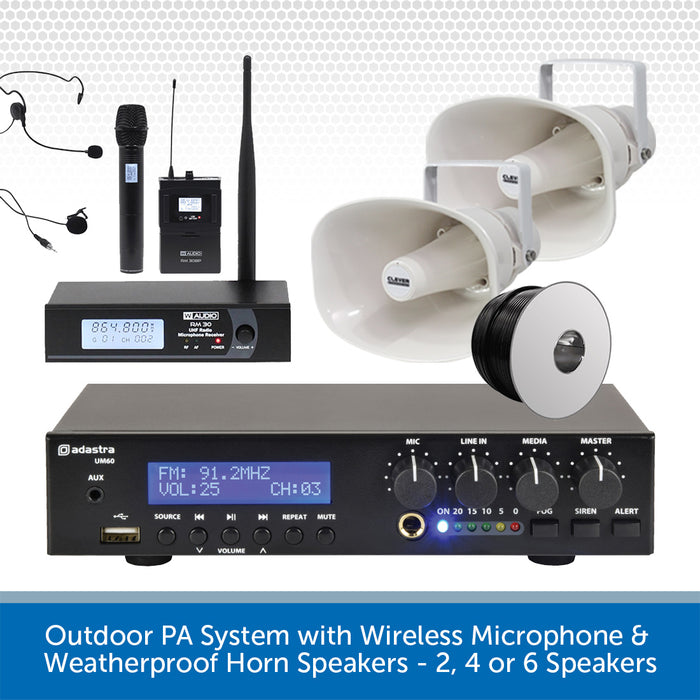

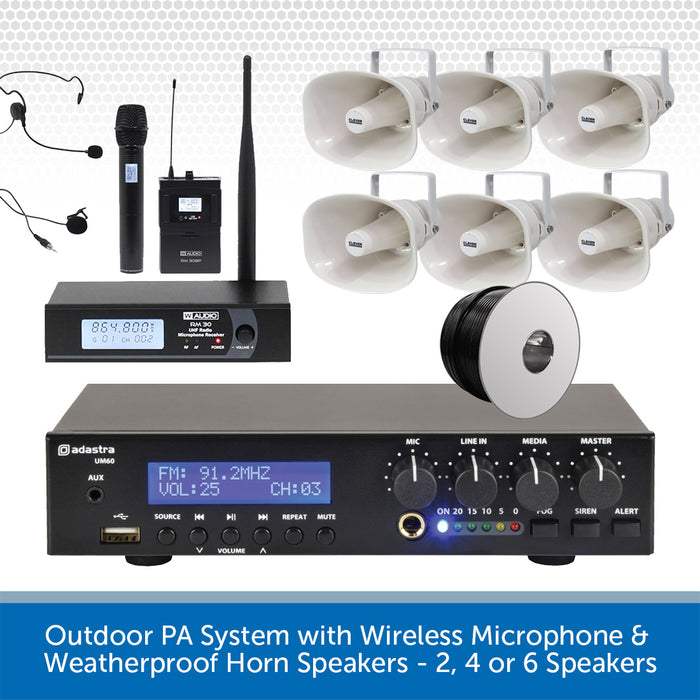

Outdoor PA System with Wireless Microphone & Weatherproof Horn Speakers - 2, 4 or 6 Speakers
An outdoor PA system with a wireless microphone, a choice of 2, 4 or 6 weatherproof horn speakers providing a professional solution for paging announcements & background music at sports grounds, equestrian centres, warehouses, factories and environments alike.
Our outdoor PA speaker system comes complete with a compact 60W 100V Line Bluetooth mixer amplifier with a built-in MP3/FM tuner, 15W weatherproof horn speakers, a wireless microphone system with a headset, handheld & tie-clip mic, as well as 100m of heavy-duty outdoor speaker cable.
This professional outdoor PA system is perfect for both paging announcements and music playback within any commercial environment. Simply connect a media device such as a smartphone, tablet, laptop or CD player via Bluetooth connectivity of one of the line inputs (RCA Phono) located to the rear.
The included wireless microphone system comes with a receiver which connects directly into the amplifier. Connecting into MIC 1 at the rear of the amplifier will provide you with VOX Priority which will momentarily mute the other inputs (i.e. music/radio) when a signal from the microphone is picked up, this is great for making clear announcements over the music. The mic system is supplied with a headset, handheld, and tie-clip microphone.
Choose from 2, 4 or 6 weatherproof horn speakers depending on the size of your install. We recommend using 2-4 speakers for small low-level installations, and then the 6 speaker system for slightly bigger environments. The outdoor horn speakers have 100V Line power tappings of 15W & 7.5W, providing crystal-clear audio for general PA announcements and comfortable background music.
Installers will be pleased to know that our outdoor PA system is extremely straightforward and quick to set up. Everything is included in the package to get you up and running in no time.
Our outdoor PA speaker kit is provided with 100m of heavy-duty outdoor speaker cable that is tried and tested.
60W 100V Mixer Amplifier Key Features
- 1 x 60 W
- Class D concept with high efficiency to cut energy costs
- MP3 player with USB/SD interface, FM radio, LED display, infrared remote control
- 1 balanced XLR microphone input with phantom power and priority selection for announcements
- 2 unbalanced inputs, switchable mic/line
- 2 unbalanced line inputs
- 1 emergency input
- 1 music on hold output (MOH)
- Speaker outputs via screw terminals
- 2 line outputs
- Input level control and output level control
- 2-way tone control for the output
- LEDs for indicating operation, clipping, protect and signal level
15W Weatherproof Horn Speakers Key Features
- 3-year warranty
- Multiple power taps
- High intelligibility speech reproduction
- Rugged ABS enclosure
- Weather resistant construction suitable for outdoors
- Supplied with adjustable mounting bracket
If you require any further assistance regarding our 100V Line range just contact us on 02476 369898 and one of our experts will be happy to help.
60W 100V Mixer Amplifier Specifications
- Channels: 1
- Zones: 1
- Inputs: 5-8 mV/600 Ω (mic 1-3), 150-470 mV/10 kΩ (line, unbal.),
- Frequency range: 60-15,000 Hz
- Equalizer bass: yes
- Equalizer treble: yes
- S/N ratio: 72 dB (mic) 85 dB (line)
- THD: < 0.500%
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 160 VA
- Operating voltage (possible alternative): DC 24 V
- Power supply (possible alternative): 4.200 A
- Admiss. ambient temp.: 0-40 °C
- Width: 320 mm
- Height: 95 mm
- Depth: 245 mm
- Weight: 4.480 kg
- Connections: 1 x XLR (mic1), 2 x 6.3 mm jack (mic 2-3/line 1-2), 2 x RCA L/R (line 3-4), 2 x RCA (master out), 1 x IEC (FM), screw terminals (emergency, MOH, DC 24 V, speakers)
15W 100V Weatherproof Horn Speakers Specifications
- Input: 100V, 70V
- Power taps @ 100V: 7.5W, 15W
- Power taps @ 70V: 3.75W, 7.5W
- Impedance: 1.3KΩ, 670Ω
- Sensitivity (1W/1m): 103dB (±3dB)
- Maximum SPL (Rated W/1m): 115dB
- Frequency response: 250Hz-8kHz
- Connections: Flying leads
- Dimensions: 165 x 221 x 235mm
- Weight: 1.6kg
- IP rating: IP66
Wireless Microphone System Specifications
- Operating Frequency: 863.1MHz
- Handheld/microphone transmitter (requires 2x AA Batteries)
- Beltpack Transmitter (requires 2x AA Batteries)
- Tie-Clip Microphone & Headset Microphone
- Metal UHF receiver
- 6.35mm (1/4”) jack output
- 6.35mm (1/4”) jack to jack patch cable
- UK mains PSU
- Foam lined, ABS carry case
Double Insulated Speaker Cable Specifications
- CSA: 2 x 1.15mm²
- Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
- Dimensions: 7.8mmØ
- Current: 15A max.
- Sheath: Black
- Length: 100m
Clever Acoustics MA 3240 PDF Downloads
