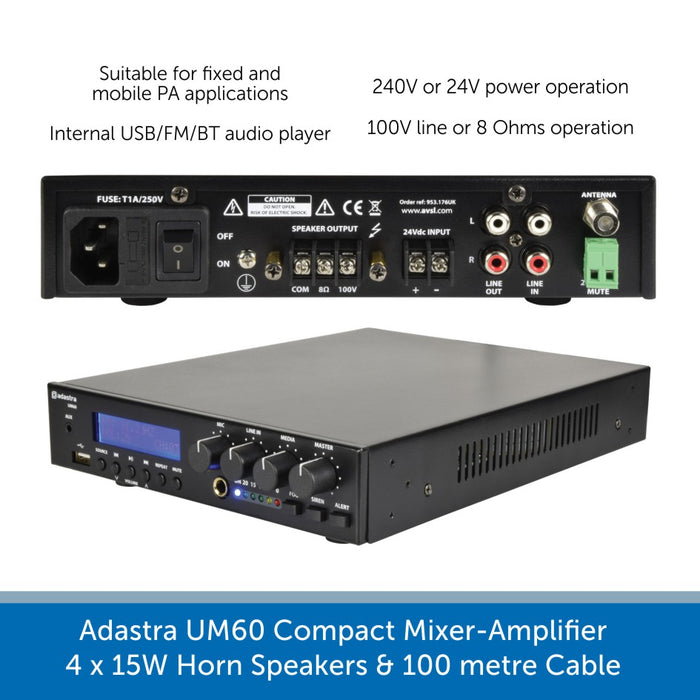

Adastra UM60 Compact Mixer-Amp, 4 x 15W Horn Speakers + Cable - FM Radio & USB Audio
DETAILS
Our Adastra UM60 & 15W Horn Speaker Kit is designed to deliver reliable, professional-quality audio for both indoor or outdoor background music/public address applications.
This all-in-one PA speaker system comes complete with the Adastra UM60 Compact 60W 100V Mixer Amplifier, 4 x 15W Weatherproof Horn Speakers, and a 100m drum of heavy-duty speaker cable.
This Adastra UM60 and horn speaker package is suitable for both fixed and mobile PA applications and can be powered via mains lead or 12V battery, such as a car or boat battery.
The complete PA speaker system offers music playback via Bluetooth, FM radio, USB or line input, as well as a microphone input for making announcements or general public address. In addition to this, the UM60 also 3 front panel warning sound buttons (fog/siren/alert). Pressing any of these will issue one of 3 preset warning sounds through the speakers for alerts and/or emergency announcements.
Adastra UM60 Mixer-Amp at a glance...
- Suitable for fixed and mobile PA applications
- Efficient Class-D amplifier design
- Ultra-compact form factor
- Internal USB/FM/BT audio player
- Microphone input
- Fog/Siren/Alert warning buttons
- 240V or 12V power operation
- 100V line or 8 Ohms operation
Clever Acoustics 15W Horn Speakers Key Features
- 3 year warranty
- Multiple power taps
- High intelligibility speech reproduction
- Rugged ABS enclosure
- Weather resistant construction suitable for outdoors
- Supplied with adjustable mounting bracket
SPECS & DOWNLOADS
Adastra UM60 Mixer-Amp Specifications
- Power supply: 170-264Vac, 50Hz (IEC)
- Amplifier : construction: Class D + transformer output
- Audio source: Internal USB/FM/BT player
- Inputs: 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
- Line output: 2 x RCA (mono)
- Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
- DC power: 24Vdc screw terminals
- Mute: 24V relay contacts
- THD: <0.4% @ 1kHz
- Input impedance: 1k Ohms (mic/line)
- Input sensitivity: -10dB (line), -45dB (mic)
- SNR: 80dB (line), 75dB (mic)
- Frequency response: 100Hz - 18kHz
- Output power : rms: 60W
- Alarm output: Fog, siren & alert generator
- Dimensions: 269 x 210 x 44mm
- Weight: 2.47kg
Clever Acoustics 15W Horn Speakers
-
Input: 100V, 70V
- Power taps @ 100V: 7.5W, 15W
- Power taps @ 70V: 3.75W, 7.5W
- Impedance: 1.3K?, 670?
- Sensitivity (1W/1m): 103dB (±3dB)
- Maximum SPL (Rated W/1m): 115dB
- Frequency response: 250Hz-8kHz
- Connections: Flying leads
- Dimensions: 165 x 221 x 235mm
- Weight: 1.6kg
- IP rating: IP66
Double Insulated Speaker Cable
- CSA: 2 x 1.15mm²
- Strands: 2 x (25 x 0.18mmØCu + 20 x 0.18mmØCCA)
- Dimensions: 7.8mmØ
- Current: 15A max.
- Sheath: Black
- Length: 100m
