W-Audio DQM 800H Quad Handheld UHF Wireless Microphone System (823Mhz-865Mhz)

by W-Audio
Original price £329.00 (inc. VAT) - Original price £329.00 (inc. VAT)
Original price £329.00 (inc. VAT)
£329.00 (inc. VAT)
£329.00 (inc. VAT) - £329.00 (inc. VAT)
Current price £329.00 (inc. VAT)
SKU MIC82
DETAILS

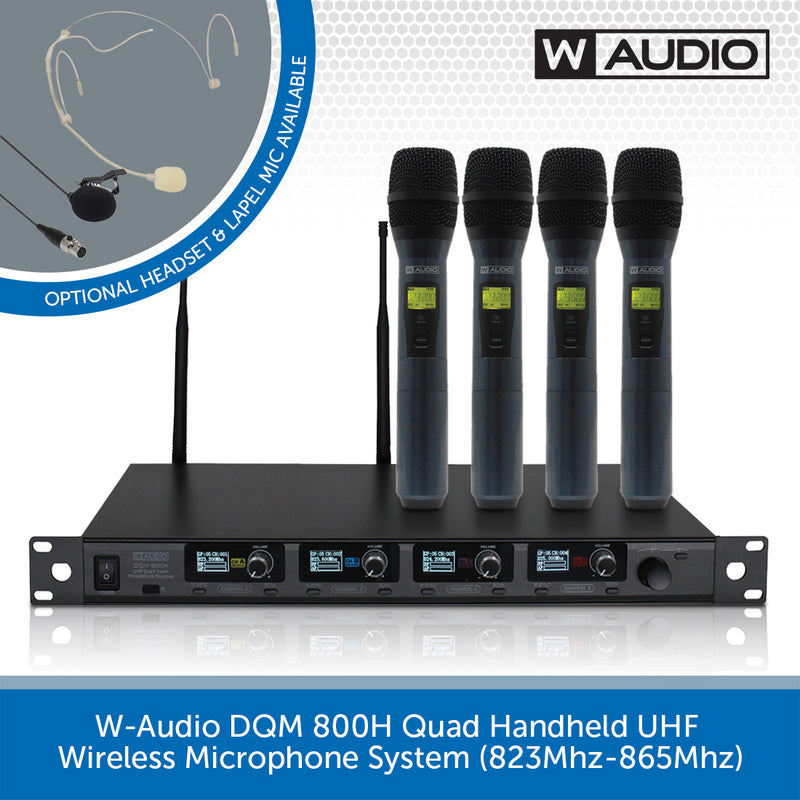

The W-Audio DQM 800H quad wireless microphone system is designed for a range of live applications where reliability and sound quality is paramount.

The W-Audio DQM 800H is designed for the professional user, featuring a full-width receiver for the ultimate in RF stability. It has a tuning bandwidth up to 9Mhz+2Mhz with 99 selectable frequencies on the 823-832Mhz CH65 and 863-865Mhz CH70 bands.

The DQM 800H offers crystal clear sound reproduction and rock-solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage.

The handheld transmitters feature an ergonomic design with a rackmount housing to stand up to the rigours of the road.

For added flexibility, this system also offers additional belt packs with a headset & lapel microphone.

Key features include:

  • UHF band, Phase Lock Loop (PLL) offering stable RF transmission
  • Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel
  • OLED display offers a wide viewing angle while remaining bright in darkened conditions
  • Frequency, Channel, RF and AF signal strength meters
  • Combined use jog wheel button operation for fast menu navigation

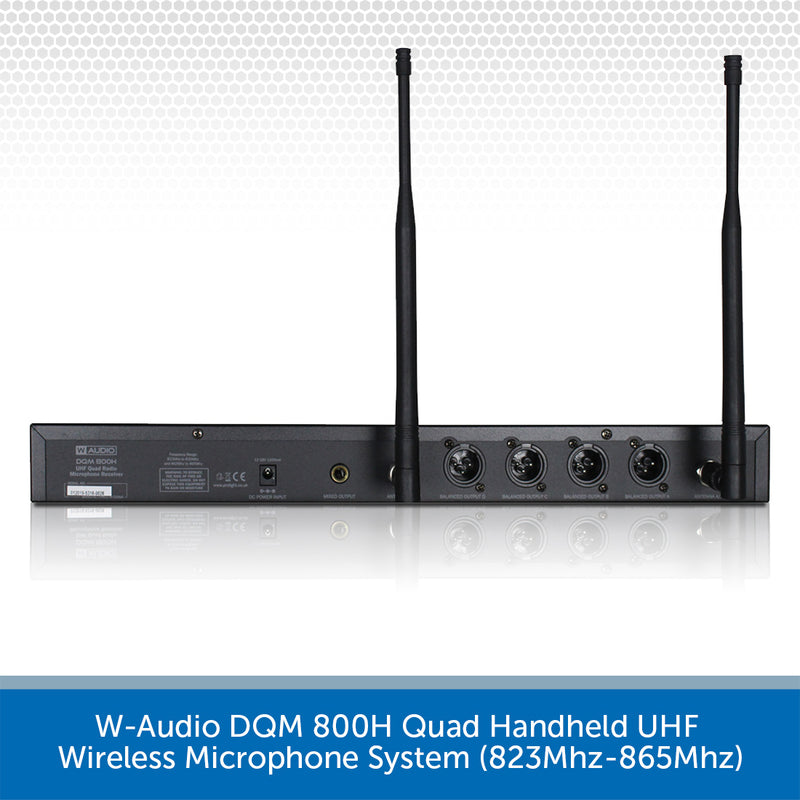

  • 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
  • Integrated antenna splitter for reduced RF interference
  • Balanced XLR output for each channel plus unbalanced mixed output
  • Automatic frequency SCAN function
  • IR infrared frequency synchronisation via infrared interface
  • Mute circuitry for reduced noise
  • Flat frequency response: 50Hz-16KHz
  • Dynamic, cardioid handheld microphone capsule
  • 1U full width rack mount receiver
  • Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
See SPECIFICATION tab for technical specs
SPECS & DOWNLOADS

W-Audio DQM 800H Specifications

    Audio output level: 400mV
    Dynamic Range: 96dB

    Receiver specifications:
    • Power supply: 14V DC (mains adaptor supplied)
    • Dimensions (H x W x D): 45 x 482 x 260mm
    • Weight: 2.3kg

    Handheld Transmitter:
    • Battery configuration: 2 x 1.5V AA (not supplied)
    • Dimensions (H x W x D): 250 x 45 x 45mm



      W-Audio DQM 800H - PDF file download

      Download the User Manual HERE

      }
