Cloud Electronics DCM1e - Digital 8-Zone Audio Mixer with Ethernet Port/Web Control 2U

Original price £1,854.00 (inc. VAT) - Original price £1,854.00 (inc. VAT)
Original price £1,854.00 (inc. VAT)
£1,854.00 (inc. VAT)
£1,854.00 (inc. VAT) - £1,854.00 (inc. VAT)
Current price £1,854.00 (inc. VAT)
SKU CLODCM1E
Link to our Cloud Wall Plate Compatibility Page
DETAILS

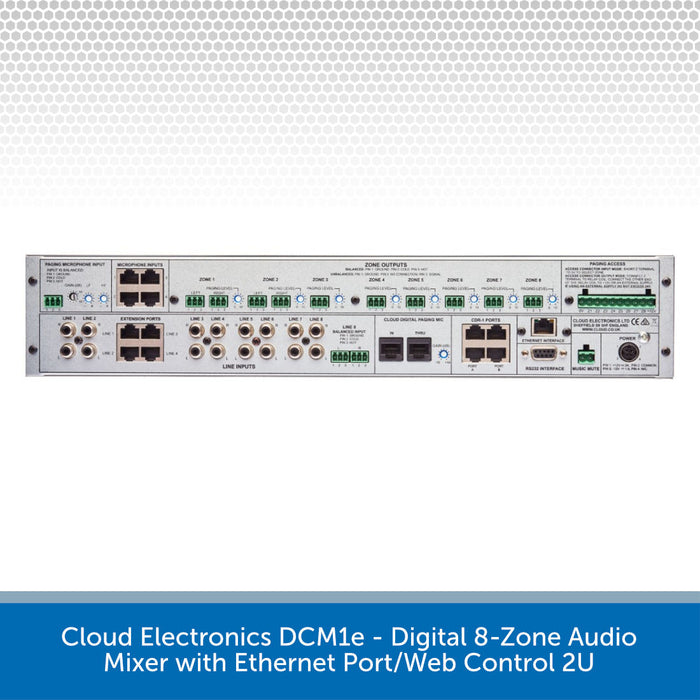

The DCM1e is the new Ethernet version of the popular DCM1 Digital Control Zone Mixer. The addition of an Ethernet port on the rear panel of the new DCM1e allows this in-built Ethernet web-server to be connected via an RJ-45 socket to an independent or existing wireless router.

These new features mean the new DCM1e can be configured and controlled remotely by any mobile device connected to the network.

Using the web browser of any mobile or fixed devise the End User has "limited installer defined" controls via 4 simple and intuitive interface pages. The Installer has administrator statues via "Configuration Options" which are password protected.

Cloud DCM1e Key Features:

  • 8 Stereo Line Inputs (1 Balanced)
  • 8 Balanced Line Outputs (2 Stereo + 6 Mono)
  • 4 Dedicated RJ-45 Ports for optional Line Inputs (LE-1)
  • 4 Dedicated RJ-45 Ports for optional Mic Input Sockets (ME-1)
  • Microphone Paging to all or any zone with fully programmable overide logic
  • Separate analogue paging Microphone Input with analogue contact closure selection
  • Configurable remote Controls (CDR-1)
  • Configurable Line Priority by Zone
  • RS-232 Interface for Crestron/Other Control
  • Ethernet Connection Socket and Web Server for PC,Tablet & Mobile Device Control
  • Accepts Bose, Amina and Active Audio EQ cards

    Cloud products have a 5 year commercial warranty as standard

    View the full range of Cloud Electronics amplifiers & speakers HERE >

    VIDEO

      SPECS & DOWNLOADS

      Cloud Electronics DCM1e Specifications

      Line Inputs

      • Frequency Response: 20 Hz - 20k Hz ±1 dB
      • Distortion: <0.05 %, 20 Hz - 20k Hz
      • Sensitivity: 195 mV (-12 dBu) to 3.1 V (+12 dBu)
      • Input Gain Control: 24 dB range
      • Input Impedance: 47k Ω
      • Headroom: >+10 dB
      • Noise: -90 dB A weighted (0 dB gain)
      • Equalisation
        • HF: ±14 dB/10k Hz
        • MID: ±14 dB/1200 Hz
        • LF: ±14 dB/50 Hz

      Paging Microphone Inputs

      • Frequency Response: 100 Hz / -3 dB(filter) to 20 kHz ±0.5dB
      • Distortion: <0.05% 20 Hz-20k Hz
      • Gain Range: 10 dB - 50 dB
      • Input Impedance: >2k Ω (balanced)
      • Phantom Power: +12 V (PCB jumper for on/off)
      • Headroom: >20 dB
      • Noise: -120 dB EIN 22 Hz - 22k Hz (150 Ω)
      • Equalisation
        • HF: ±10 dB/5k Hz
        • LF: ±10 dB/100 Hz

      Outputs

      • Balanced Zone Outputs: 775 mV (0 dBu)
      • Minimum load impedance: 600 Ω
      • Maximum output level: +10 dBu (2.6 V)

      External Power Supply

      • External Supply Input: 100 V-240 V AC; 47-63 Hz; 1.35 A
      • Power supply: +12 V, 3 A; -12 V 1 A

      Physical & Dimensions

      • Dimensions (w x h x d): 482.6 mm x 88 mm (2U) x 170 mm
      • Dimensions (packed): 570 mm x 270 mm x 220 mm
      • Weight net: 3.12 kg
      • Weight packed: 4 kg packed

        Cloud Electronics DCM1e PDF Downloads

        Download the Product Data Sheet HERE

        }
