Fonestar MX-824 12-Channel Microphone Mixer with Phantom Power
DETAILS
The Fonestar MX-824 is a professional 12-channel microphone mixer, ideal for audio installations requiring multiple microphone inputs.
Designed with versatility in mind, it’s well-suited for environments such as places of worship, schools, and theatres where extensive microphone arrangements are needed for concerts, plays, or public address announcements.
With independent volume control for each channel and a 48V phantom power supply, it’s equally capable in public address applications involving multiple paging microphones.
Clear and Configurable Audio Control

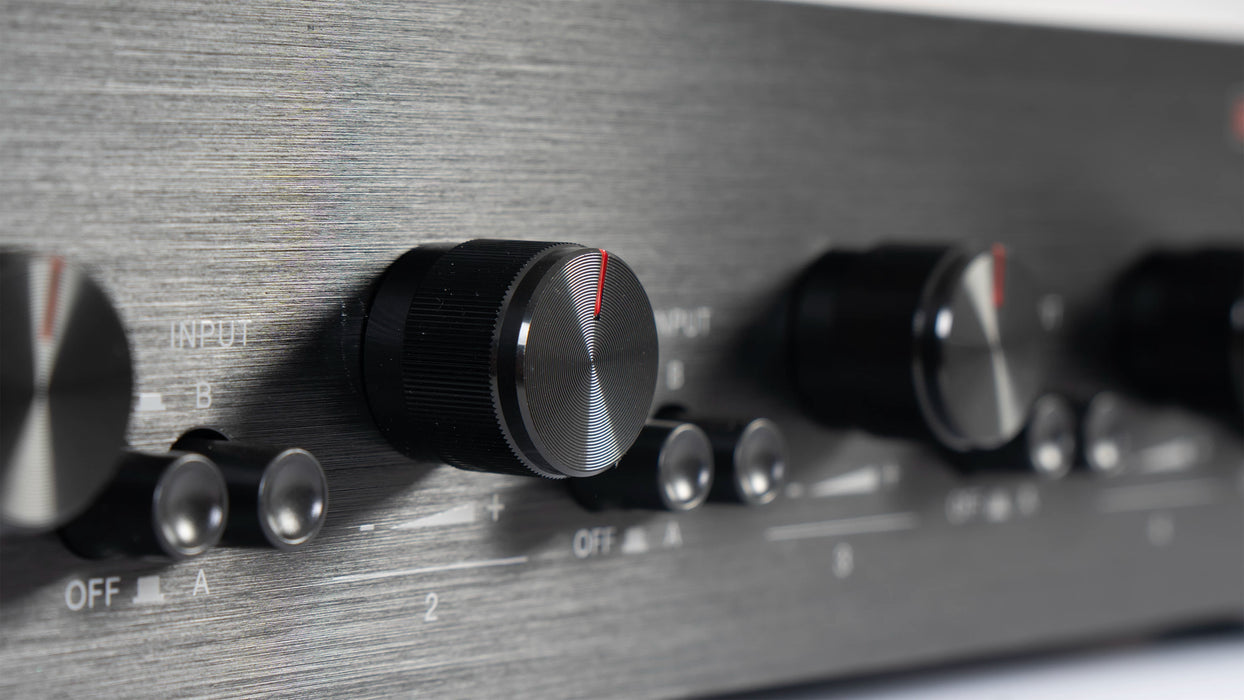

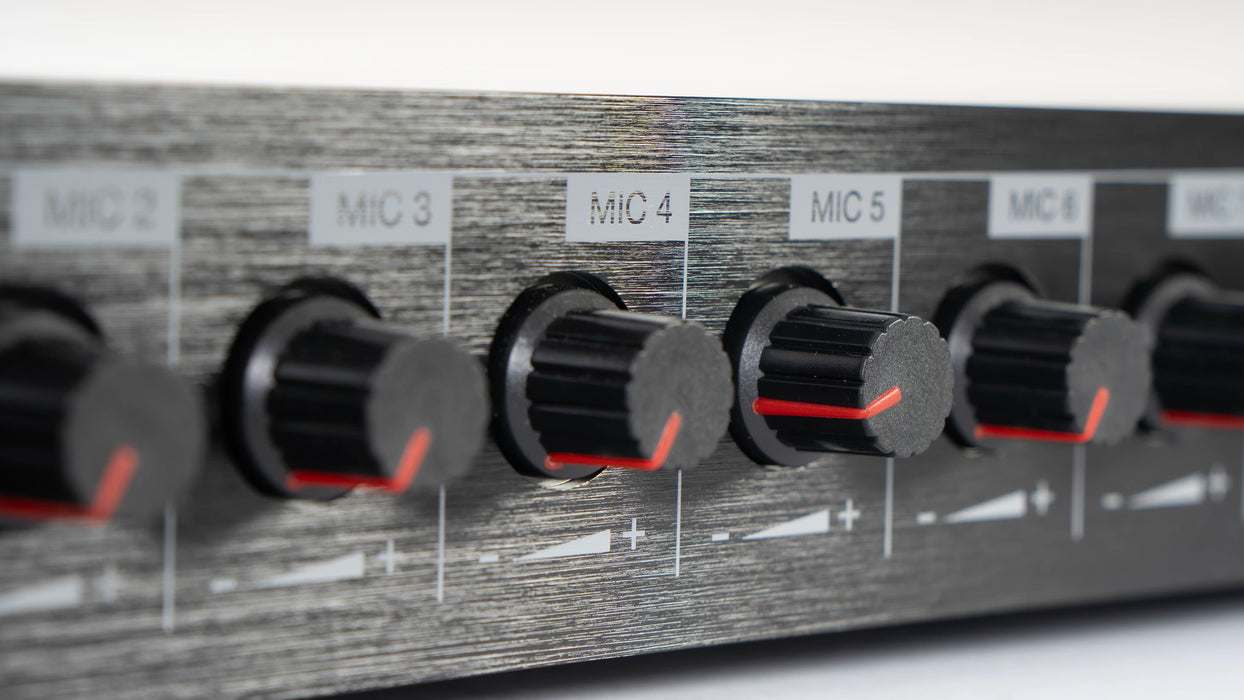

Each of the 12 channels on the MX-824 offers independent gain control, allowing precise adjustment for each microphone input. This functionality, combined with 48V phantom power, enables compatibility with condenser microphones, providing clear and accurate audio for professional sound applications.
Flexible Outputs and Simple Integration
The MX-824 features both a balanced XLR mono output and RCA stereo output, ensuring compatibility with a wide range of 100V and low-impedance amplifiers. This connectivity flexibility makes it ideal for multi-microphone audio setups across various venues and uses.
Compact and Durable Design

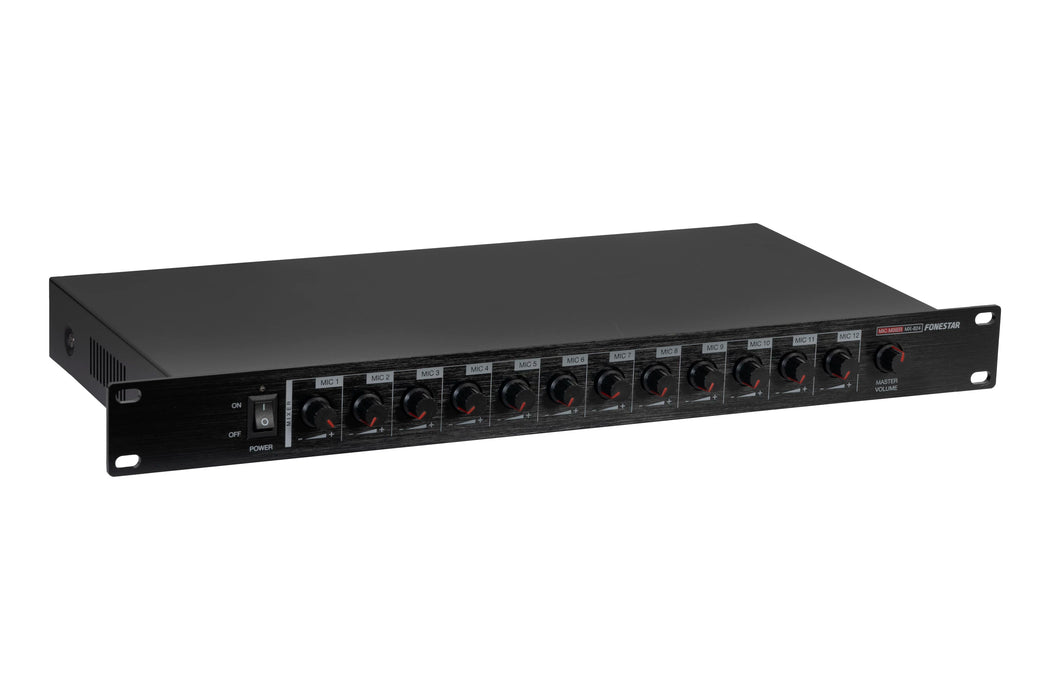

Housed in a 1U 19" rack-mountable unit, the MX-824 is designed for easy integration into existing equipment racks. Its robust construction ensures durability, while the unit’s compact design (measuring 483 x 44.5 x 225 mm) makes it convenient to install even in limited spaces.
Fonestar MX-824 is Ideal For:
- Places of Worship: Seamlessly integrates into church sound systems, supporting multiple microphones for ceremonies and events.
- Theatres and Schools: Perfect for venues requiring extensive mic setups for plays, concerts, or assemblies.
- Public Address Systems: Great for facilities needing multiple paging microphones for announcements and communication.
Fonestar MX-824 Key Features:
- 12 balanced microphone inputs: 600 Ω, XLR 2.5 mV, each with independent volume control
- 48V Phantom Power: Selectable phantom power for all 12 channels, perfect for condenser microphones

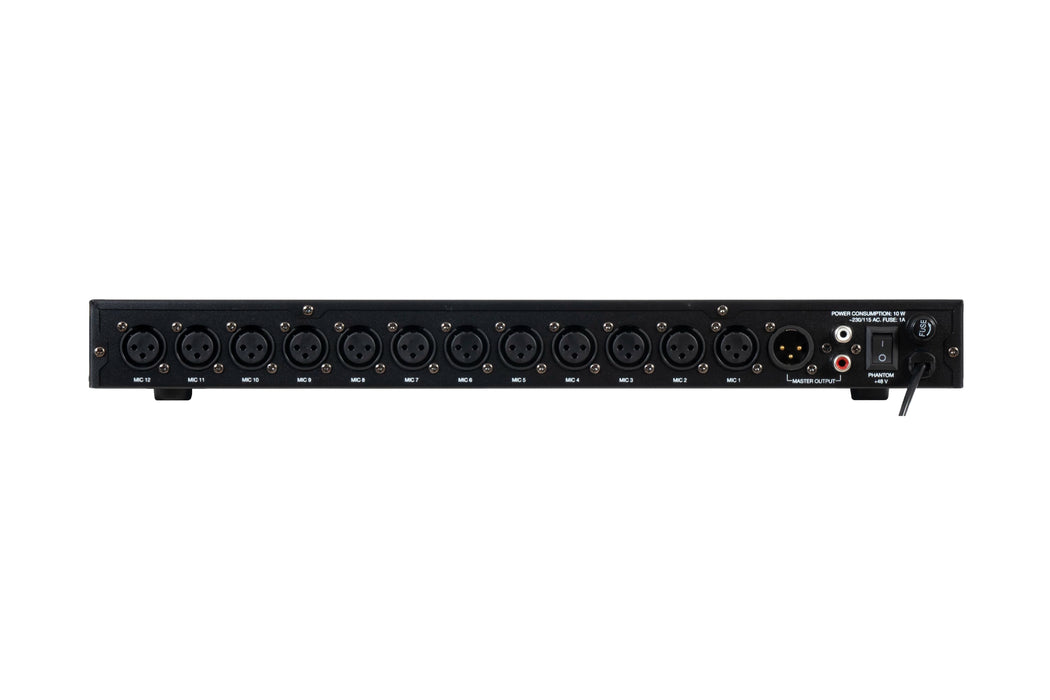

- Output Options: 1 balanced XLR mono output and unbalanced RCA stereo outputs for flexible integration
- Frequency Response: 50 - 20,000 Hz for clear and consistent audio across a wide range
- 1U 19” Rack-Mountable Design: Compact, space-efficient, and durable, weighing only 2.7 kg
- Included Accessories: Comes with 1 RCA cable and 1 XLR cable for added convenience
SPECS & DOWNLOADS
Fonestar MX-824 PDF Spec Sheet > DOWNLOAD HERE
Fonestar MX-824 Specifications
-
Inputs: 12 balanced mics, XLR 600 Ω 2.5 mV
-
Outputs: 1 balanced master XLR 600 Ω 7 mV and unbalanced 2 x RCA 4,700 Ω 150 mV
-
Controls: Volume per master input and output
-
Response: 50-20,000 Hz
-
S/N Ratio: > 60 dB
-
Phantom: 48 V on mics 1 to 12, selectable
-
Power Supply: 230/115 V AC, 10 W
-
Dimensions: 483 x 44.5 x 225 mm depth. 1 U 19" rack
-
Weight: 2.7 kg
- Accessories: 1 RCA cable, 1 XLR cable
