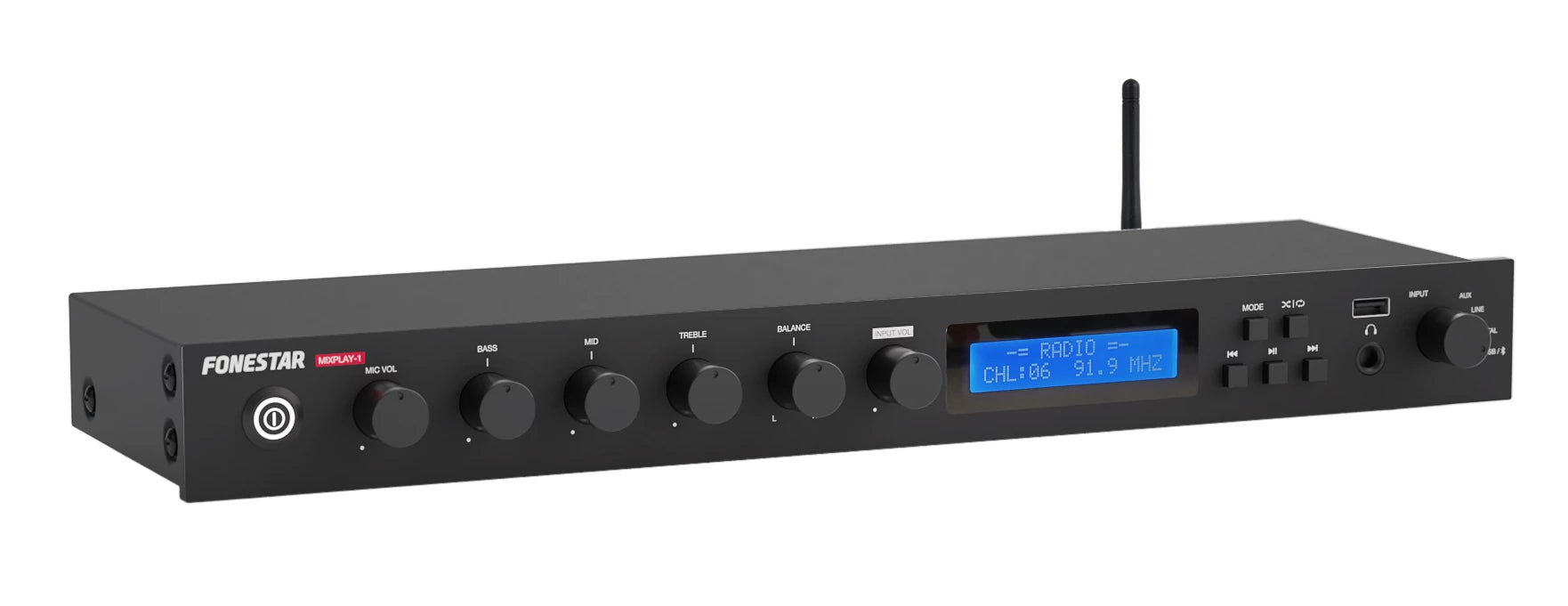

Fonestar MIXPLAY-1 Bluetooth/USB/FM Player with Recorder and Mixer Function

Original price £180.00 (inc. VAT) - Original price £180.00 (inc. VAT)
Original price £180.00 (inc. VAT)
£180.00 (inc. VAT)
£180.00 (inc. VAT) - £180.00 (inc. VAT)
Current price £180.00 (inc. VAT)
SKU MIXPLAY-1
DETAILS

The Fonestar MIXPLAY-1 is an all-in-one audio hub that combines playback, recording, and mixing capabilities in a compact, professional unit.

Designed for commercial environments such as restaurants, bars, retail stores, and warehouses, the MIXPLAY-1 streamlines audio control, offering versatility and user-friendly functionality. This multimedia player is an ideal choice for installations needing reliable, high-quality sound and seamless management of music and microphone audio.

Comprehensive Playback and Recording Capabilities

The MIXPLAY-1 offers a range of playback options, including Bluetooth® streaming, USB, SD, and FM radio, to cover a variety of listening preferences. Equipped with a microphone input, this player includes an advanced priority function that lowers the music volume for clear voice transmission during announcements. Additionally, the MIXPLAY-1’s recorder function enables users to record the microphone mix and other input sources, ensuring easy capture of live audio.

Versatile Connectivity and Mixing Options

With numerous inputs and outputs, the MIXPLAY-1 offers impressive connectivity to suit diverse audio setups. Digital inputs (optical and coaxial) and auxiliary or line inputs expand device compatibility, while three output channels allow for easy connection to audio amplifiers. The outputs are configurable as mono or stereo and include a dedicated subwoofer output for enhanced bass, making it easy to create a balanced sound system.

Compact, Professional Design for Easy Installation

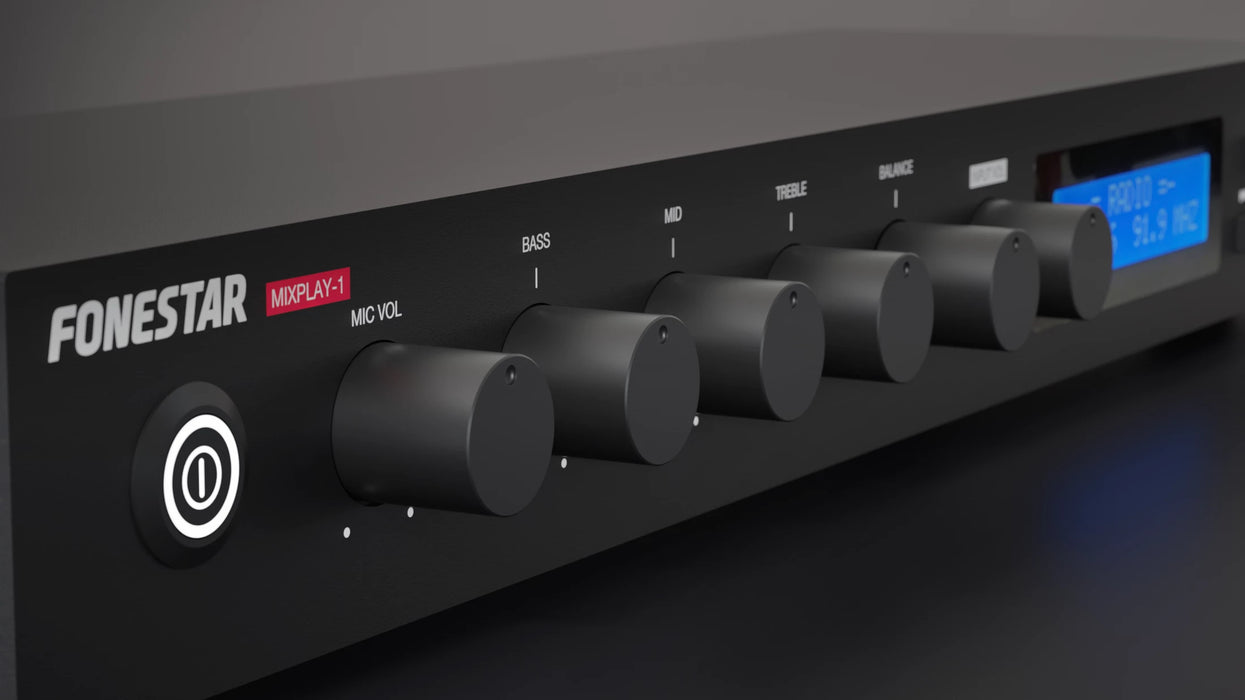

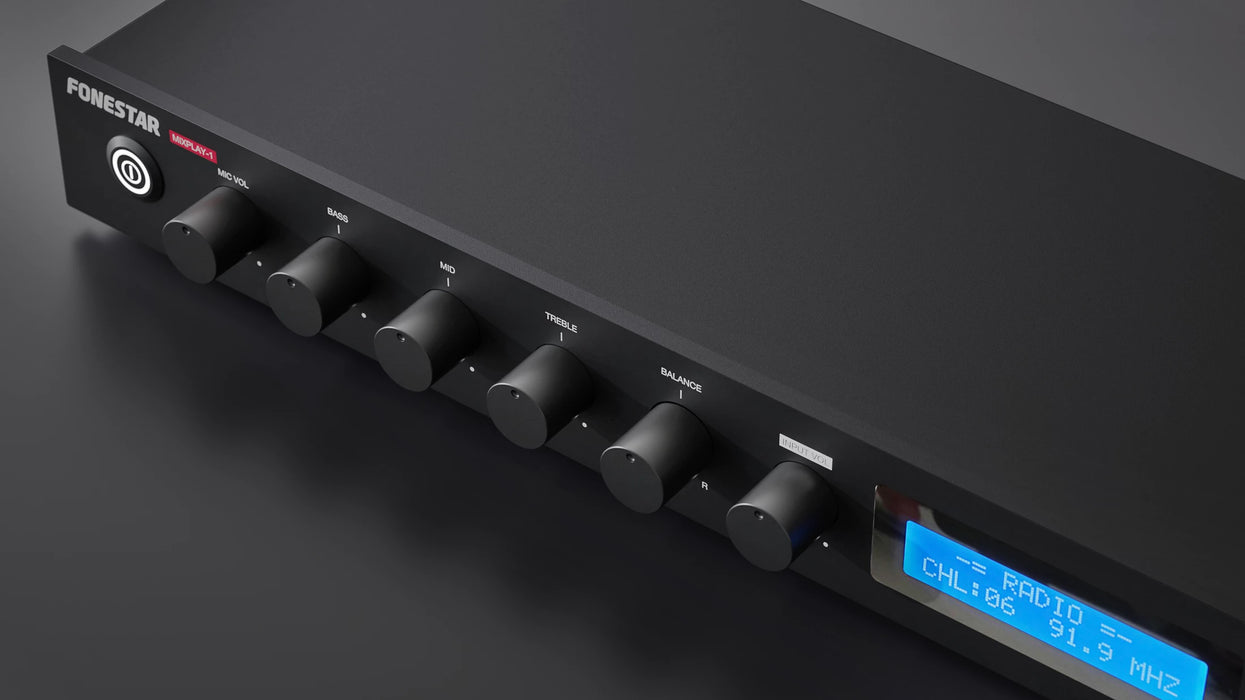

Compact and 1U rack-mountable, the MIXPLAY-1 saves space while delivering robust performance, making it suitable for both small installations and professional audio setups. Its intuitive controls and clear display simplify operation, allowing staff or operators to manage audio with ease.

Fonestar MIXPLAY-1 Key Features:

  • Playback Options: Bluetooth®, USB, SD, and FM radio for versatile music sourcing
  • Recording Function: Records the microphone mix and all other input sources
  • Microphone Priority Function: Automatically attenuates music for announcements
  • Multiple Inputs and Outputs: Includes digital, auxiliary, and line inputs with mono/stereo and subwoofer outputs
  • Compact Design: 1U 19” rack-mountable with included mounting brackets
  • User-Friendly Interface: Simplifies operation in busy commercial settings
SPECS & DOWNLOADS

Fonestar MIXPLAY-1 PDF Spec Sheet > DOWNLOAD HERE

Fonestar MIXPLAY-1 Specifications

  • Response: 20-20,000 Hz
  • Distortion: THD+N: < 0.1% @ 1 kHz
  • S/N Ratio: Mic >60 dB, Aux >70 dB

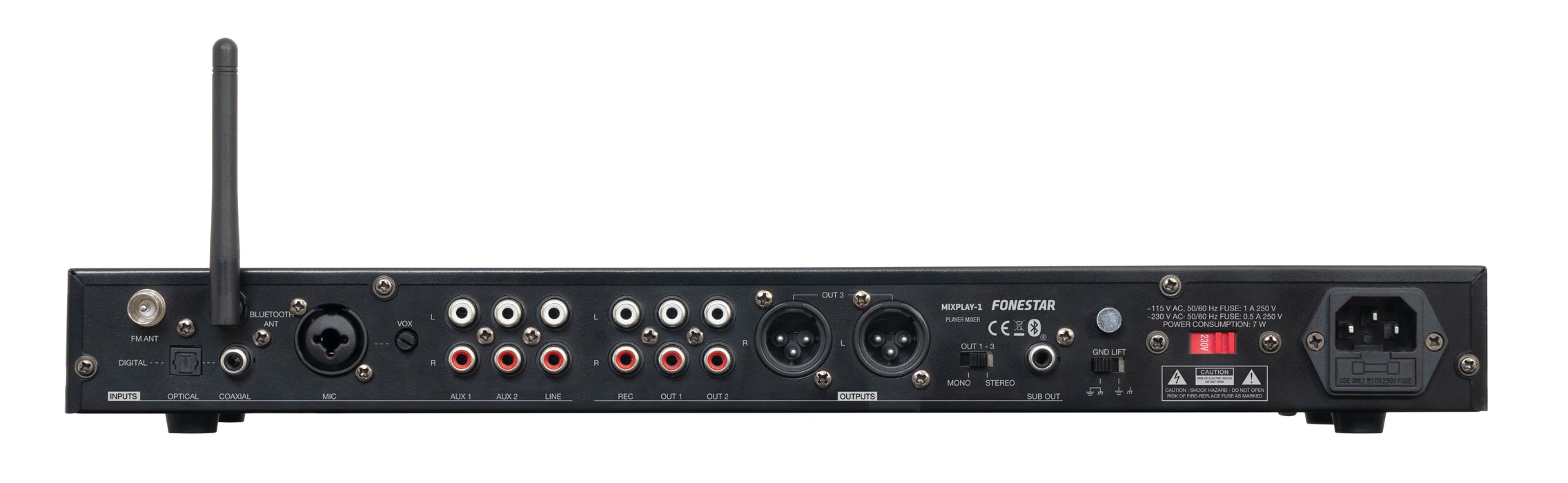

  • Inputs: 1 x MIC balanced Micro. Combo (XLR + 6.3 mm) connector. Signal level 30 mV RMS (-30 dBV) / 600 Ω (@ balanced and unbalanced output 1 V RMS)
    2 AUX and LINE. 2 x RCA connector. Signal level: 350 mV RMS (-9 dBV) / 47K Ω (@ balanced 1 V RMS output). Signal level: 750 mV RMS (-2.5 dBV) / 47K Ω (@ unbalanced output 1 V RMS)
    1 x digital audio (optical or coaxial). Connectors, TOSLINK and RCA. Priority of the optical input over the coaxial input
  • Outputs: OUT 1 and OUT 2 unbalanced output. 2 x RCA connectors. Signal level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω
    OUT 3 balanced output. 2 x XLR connectors. Output level: 1 V RMS (0 dBV), max. 6.5 V RMS (16 dBV) @ THD 1% / 1K5 Ω
    1 x REC. 2 x RCA connectors. Signal level. 1 V RMS (0 dBV) / 1K5 Ω
    1 x Subwoofer. RCA connector. Signal level: 1 V RMS (0 dBV) / 1K5 Ω
    1 x Headphones. 6.3 mm stereo connector.
  • Functions: Microphone priority by signal level over all other inputs, level selectable
    Mono/stereo output selector for OUT 1, OUT 2 and OUT 3
  • Player: Bluetooth/USB/FM player
    Supported MP3, WMA and WAV files
    USB recorder of the microphone mix and AUX or Line inputs (does not record digital audio input)
    USB sticks of 64 GB maximum, FAT32 and NTFS format
    USB flash drive autoplay, starts playback automatically in USB mode on power-up
    Playback mode memory (random, repeat).
  • Controls: Microphone volume.
    Input selector or player
    Volume of AUX, LINE, DIGITAL and player inputs with balance, bass, mid and treble control
    Mono/stereo selector for outputs
    Player/recorder controls
    GND lift ground disconnection
  • Power Supply: 230/115 V AC, 7 W
  • Dimensions: 433 x 45 x 155 mm depth. 1 U 19” rack
  • Weight: 1.9 kg

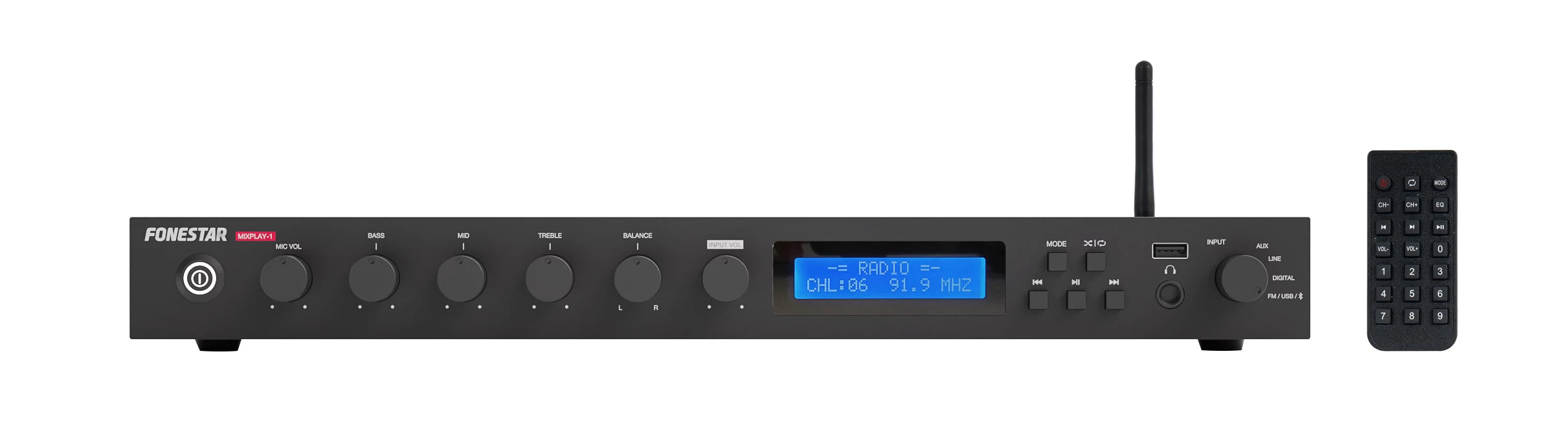

  • Accessories: Remote control of the player.
    FM antenna
    Power cable
    Brackets for 19" rack.
}
